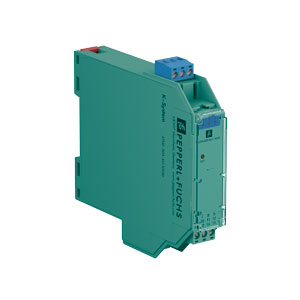

Pepperl Fuchs KFD2-VM-Ex1-35-L Solenoid Driver
The Pepperl Fuchs KFD2-VM-Ex1-35-L Solenoid Driver offers a Digital Output signal type, on 35 mm DIN mounting rail , and screw terminals connection. Manufactured by Pepperl Fuchs under the P&F Solenoid Driver category.
| Brand | Pepperl Fuchs |
| Product Type | Solenoid Driver |
| Model Number | KFD2-VM-Ex1-35-L |
Pepperl Fuchs KFD2-VM-Ex1-35-L Solenoid Driver β Technical Specifications
| Specification | Value |
|---|---|
| Signal type | Digital Output |
| Safety Integrity Level (SIL) | - |
| Systematic capability (SC) | - |
| Supply Connection | Power Rail or terminals 11+, 12- |
| Rated voltage | 20 ... 30 V DC |
| Rated current | β€ 52 mA |
| Power dissipation | typ. 1.2 W |
| Power consumption | < 1.5 W |
| Connection side (Input) | control side |
| Connection (Input) | terminals 7+, 8+, 9+ |
| Signal Level | 1-signal: 15 ... 30 V DC ; input current: approx. 2.3 mA at 24 V DC 0-signal: 0 ... 5 V DC or open input |
| Inrush current(Input) | - |
| Connection side (Output) | field side |
| Connection (Output) | terminals 4+, 6- |
| Internal resistor | max. 410 Ξ© |
| Current | typ. 18 mA |
| Voltage | typ. 16 V |
| Output current | 17 mA |
| Switching frequency | 15 Hz |
| Display elements | - |
| Control elements | - |
| Labeling | - |
| Dimensions | 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) |
| Connection | screw terminals |
| Mounting | on 35 mm DIN mounting rail |
| Ambient temperature | -20 ... 60 Β°C (-4 ... 140 Β°F) |
| Degree of protection | IP20 |
| Mass | approx. 150 g |
Ask for the Pricing of P&F 15 Hz Switching Frequency Solenoid Driver KFD2-VM-Ex1-35-L at unbeatable prices. Detailed Specifications of KFD2-VM-Ex1-35-L, feature digital output and operates with a power rail or an input voltage of 20-30 V DC, consuming a typical current of 52 mA and power of 1.2 W, with a maximum of 1.5 W. The control side connects via terminals 7+, 8+, 9+, supporting a 1-signal voltage of 15-30 V DC with an input current of approximately 2.3 mA at 24 V DC, and a 0-signal voltage of 0-5 V DC or open input. The field side connects via terminals 4+ and 6-, with a maximum resistance of 410 Ξ© and a typical current of 18 mA at 16 V. It operates with a switching frequency of 15 Hz. Dimensions are 20 x 107 x 115 mm, and it mounts on a 35 mm DIN rail. The device operates in temperatures ranging from -20 to 60 Β°C, with an IP20 rating, and weighs approximately 150 g. Now's the Time to Secure a Quote for your requirement of P&F 15 Hz Switching Frequency Solenoid Driver. We're committed to offering more favorable pricing and more responsive support than other Traders.
