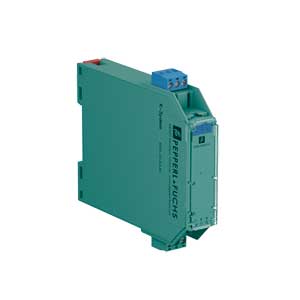

Pepperl Fuchs KFD0-CS-Ex1-54 Repeater
The Pepperl Fuchs KFD0-CS-Ex1-54 Repeater offers a Analog input signal type, SIL 3, and screw terminals connection. Manufactured by Pepperl Fuchs under the P&F Repeater category.
| Brand | Pepperl Fuchs |
| Product Type | Intrinsic Safety Barrier |
| Model Number | KFD0-CS-Ex1-54 |
Pepperl Fuchs KFD0-CS-Ex1-54 Repeater β Technical Specifications
| Specification | Value |
|---|---|
| Signal type | Analog input |
| Safety Integrity Level (SIL) | SIL 3 |
| Supply Connection | - |
| Rated voltage | 0 ... 24 V DC , loop powered |
| Ripple | - |
| Power dissipation | < 0.2 W for Uin = 24 V, Iout = 20 mA |
| Power consumption | - |
| Connection side (Input) | - |
| Connection (Input) | - |
| Input resistance | - |
| Output current | - |
| Transmission range | voltage: 4 ... 20 V DC/0 ... 6 Vpp AC current: 1 ... 20 mA |
| Connection side (Output) | - |
| Connection (Output) | - |
| Output Voltage | - |
| Output/power supply | - |
| Display elements | - |
| Conformity Electromagnetic compatibility | NE 21:2006 |
| Degree of protection | IEC 60529:2001 |
| Ambient temperature | -20 ... 60 Β°C (-4 ... 140 Β°F) |
| Degree of protection | IP20 |
| Connection | screw terminals |
| Mass | approx. 100 g |
| Dimensions | 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1 |
| EU-type examination certificate | BAS 00 ATEX 7087 |
| Certificate | TΓV 99 ATEX 1499 X |
Ask for the Pricing of Pepperl Fuchs 20 mm Housing Width Repeaters KFD0-CS-Ex1-54 at unbeatable prices. Detailed Specifications of KFD0-CS-Ex1-54 features Analog input, SIL 3 rated device operates on a 0 ... 24 V DC , loop powered power supply via -. It features a low power consumption of -. The field side includes terminals for common, supply, and signal, with 10 kΞ© impedance. It supports voltage: 4 ... 20 V DC/0 ... 6 Vpp AC current: 1 ... 20 mA on the control side and offers functional insulation with a rated voltage of 50 V AC. Compliant with NE 21:2006 standards, it operates in temperatures from -20 ... 60 Β°C (-4 ... 140 Β°F), with an IP20 rating. The unit's compact housing measures 20 x 107 x 115 mm (0.8 x 4.2 x 4.5 inch) (W x H x D) , housing type B1 and weighs approximately approx. 100 g. It includes screw terminals for easy installation and an LED indicator. Now's the Time to Secure a Quote for your requirement of Pepperl Fuchs 20 mm Housing Width Repeaters. We're committed to offering more favorable pricing and more responsive support than other Traders.
