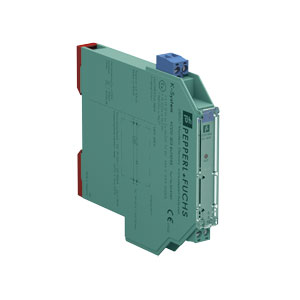

Pepperl Fuchs KCD0-SD3-Ex1-1245 Solenoid Driver
The Pepperl Fuchs KCD0-SD3-Ex1-1245 Solenoid Driver offers a Digital Output signal type, on 35 mm DIN mounting rail , and screw terminals connection. Manufactured by Pepperl Fuchs under the P&F Solenoid Driver category.
| Brand | Pepperl Fuchs |
| Product Type | Solenoid Driver |
| Model Number | KCD0-SD3-Ex1-1245 |
Pepperl Fuchs KCD0-SD3-Ex1-1245 Solenoid Driver β Technical Specifications
| Specification | Value |
|---|---|
| Signal type | Digital Output |
| Safety Integrity Level (SIL) | SIL 3 |
| Systematic capability (SC) | SC 3 |
| Supply Connection | - |
| Rated voltage | loop powered |
| Rated current | - |
| Power dissipation | < 1.3 W |
| Power consumption | - |
| Connection side (Input) | control side |
| Connection (Input) | terminals 5+, 6- |
| Signal Level | 1-signal: 19 ... 30 V DC 0-signal: 0 ... 5 V DC |
| Inrush current(Input) | β€ 200 mA after 100 Β΅s |
| Connection side (Output) | field side |
| Connection (Output) | terminals 1+, 2- |
| Internal resistor | approx. 240 Ξ© |
| Current | typ. 45 mA |
| Voltage | β₯ 12 V |
| Output current | 45 mA |
| Switching frequency | max. 10 Hz |
| Display elements | LED |
| Control elements | - |
| Labeling | space for labeling at the front |
| Dimensions | 12.5 x 119 x 114 mm (0.5 x 4.7 x 4.5 inch) |
| Connection | screw terminals |
| Mounting | on 35 mm DIN mounting rail |
| Ambient temperature | -20 ... 70 Β°C (-4 ... 158 Β°F) |
| Degree of protection | IP20 |
| Mass | approx. 150 g |
Mail Us for your needs P&F Housing Width 12.5 mm Solenoid Drivers KCD0-SD3-Ex1-1245 with a housing width of 12.5 mm. This digital output device features SIL 3 and SC 3 ratings, operating in a loop-powered configuration with power consumption of less than 1.3 W. The control side connects via terminals 5+ and 6-, delivering a 1-signal voltage of 19-30 V DC and a 0-signal voltage of 0-5 V DC, with a current of up to 200 mA after 100 Β΅s. The field side connects via terminals 1+ and 2-, with a resistance of approximately 240 Ξ© and a typical current of 45 mA at β₯ 12 V. It operates up to 10 Hz, includes LED indicators, and provides space for labeling at the front. The device dimensions are 12.5 x 119 x 114 mm, and it mounts on a 35 mm DIN rail. It operates in temperatures ranging from -20 to 70 Β°C, with an IP20 rating, and weighs approximately 150 g. Now's the Time to Secure a Quote for your requirement of ",P&F Housing Width 12.5 mm Solenoid Drivers.
