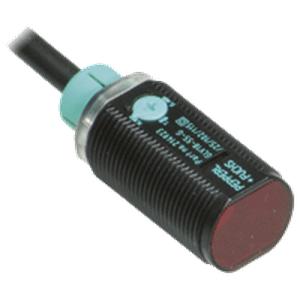

Pepperl Fuchs GLV18-55-G/115/120 Photoelectric Sensor
The Pepperl Fuchs GLV18-55-G/115/120 Photoelectric Sensor offers a 0 ... 2.5 m in glass mode;0 ... 5 m in normal mode detection range, LED light source, and 2 m fixed cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
| Brand | Pepperl Fuchs |
| Product Type | Photoelectric Sensor |
| Model Number | GLV18-55-G/115/120 |
Pepperl Fuchs GLV18-55-G/115/120 Photoelectric Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Effective detection range | 0 ... 2.5 m in glass mode;0 ... 5 m in normal mode |
| Reflector distance | 0 ... 2.5 m in glass mode;0 ... 5 m in normal mode |
| Threshold detection range | 6.5 m |
| Reference target | reflector C110-2 |
| Light source | LED |
| Light type | modulated visible red light , 640 nm |
| Polarization filter | yes |
| Diameter of the light spot | approx. 370 mm at 6.5 m ; 50 mm at 1 m |
| Opening angle | approx. 2 Β° |
| Optical face | frontal |
| Control elements | potentiometer for Teach-In and Mode selection |
| Operating voltage | 10 ... 30 V DC |
| Ripple | - |
| No-load supply current | < 15 mA |
| Switching type | light/dark on |
| Signal output | 2 PNP, complementary, short-circuit protected, open collectors |
| Switching voltage | max. 30 V DC |
| Switching current | max. 100 mA |
| Voltage drop | β€ 1.5 V DC |
| Switching frequency | 1 kHz |
| Response time | β€ 0.5 ms |
| Ambient temperature | -25 ... 60 Β°C (-13 ... 140 Β°F) |
| Storage temperature | -40 ... 70 Β°C (-40 ... 158 Β°F) |
| Degree of protection | IP67 |
| Connection | 2 m fixed cable |
| Mass | approx. 75 g |
| Cable length | - |
