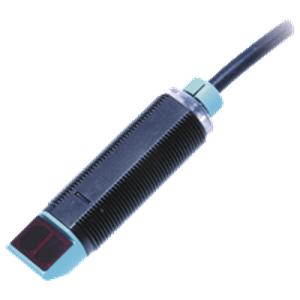

Home Products Photoelectric Sensor Pepperl Fuchs GLK18-6-S/25/115/161 Pepperl Fuchs GLK18-6-S/25/115/161 Photoelectric Sensor The Pepperl Fuchs GLK18-6-S/25/115/161 Photoelectric Sensor offers a 0 ... 5.5 m detection range, LED light source, and 2 m, 3 x 0.34 mm2, PVC cable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.
Brand Pepperl Fuchs Product Type Photoelectric Sensor Model Number GLK18-6-S/25/115/161
Pepperl Fuchs GLK18-6-S/25/115/161 Photoelectric Sensor – Technical Specifications Specification Value Effective detection range 0 ... 5.5 m Reflector distance 0.05 ... 5.5 m Threshold detection range 6.5 m Reference target reflector C110-2 Light source LED Light type modulated visible red light , 640 nm Polarization filter no Diameter of the light spot approx. 250 mm at 6.5 m Opening angle approx. 2 ° Optical face lateral Control elements - Operating voltage 20 ... 250 V AC/DC Ripple - No-load supply current < 2.5 mA Switching type light-on Signal output N-channel MOSFET, short circuit protected Switching voltage max. 250 V AC/DC Switching current max. 200 mA Voltage drop ≤ 3.5 V AC/DC Switching frequency 50 Hz Response time ≤ 10 ms Ambient temperature -20 ... 60 °C (-4 ... 140 °F) Storage temperature -40 ... 70 °C (-40 ... 158 °F) Degree of protection IP67 Connection 2 m, 3 x 0.34 mm2, PVC cable Mass approx. 100 g Cable length -
