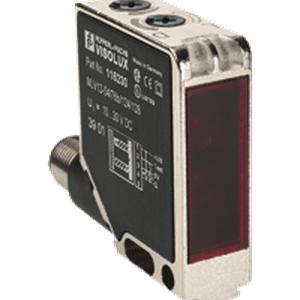

Pepperl Fuchs Fire protection MLV12-54-2563/49/124 Photoelectric Sensor

The Pepperl Fuchs Fire protection MLV12-54-2563/49/124 Photoelectric Sensor offers a 0 ... 2.1 m (with H60 reflector) detection range, LED 645 nm light source, and 5-pin M12 x 1 connector with metal thread, 90° rotatable connection. Manufactured by Pepperl Fuchs under the P&F Photoelectric Sensor category, this model belongs to the reflective sensor.

Pepperl Fuchs Fire protection MLV12-54-2563/49/124
Datasheet
BrandPepperl Fuchs
Product TypePhotoelectric Sensor
Model NumberFire protection MLV12-54-2563/49/124

Pepperl Fuchs Fire protection MLV12-54-2563/49/124 Photoelectric Sensor – Technical Specifications

SpecificationValue
Effective detection range0 ... 2.1 m (with H60 reflector)
Reflector distance0.2 ... 2.1 m
Threshold detection range-
Reference targetH60 reflector
Light sourceLED 645 nm
Light typemodulated visible red light
Polarization filter-
Diameter of the light spotapprox. 70 mm
Opening angle1.5 °
Optical face-
Control elementsrotary switch for light/dark
Operating voltage10 ... 30 V DC
Ripplemax. 10 %
No-load supply currentmax. 40 mA
Switching typelight/dark on switchable
Signal output1 NPN and 1 PNP output, direct switching, short-circuit protected, reverse polarity protected, open collector
Switching voltagemax. 30 V DC
Switching currentmax. 0.2 A
Voltage drop≤ 2.5 V DC
Switching frequency≤ 40 Hz
Response time10 ms
Ambient temperature-40 ... 60 °C (-40 ... 140 °F)
Storage temperature-40 ... 75 °C (-40 ... 167 °F)
Degree of protectionIP67
Connection5-pin M12 x 1 connector with metal thread, 90° rotatable
Mass60 g
Cable length-

Related Products

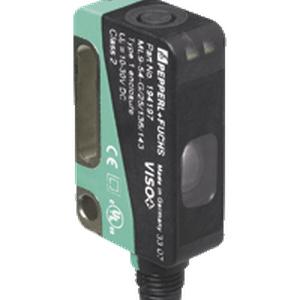

ML9-54-G/25/136/143ML9-54-G/25/136/143
