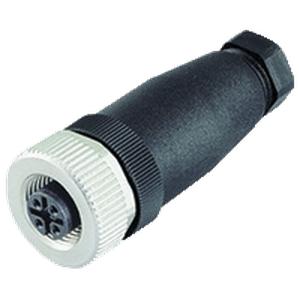

Pepperl Fuchs FeV1-G-PG9 Female Connector Field-Attachable
The Pepperl Fuchs FeV1-G-PG9 Connector offers a max. 4 A operating current, and screw terminals for max. 0.75 mm2/ AWG 18 connection. Manufactured by Pepperl Fuchs under the P&F Sensor Actuator Cables category.
| Brand | Pepperl Fuchs |
| Product Type | Connector |
| Model Number | FeV1-G-PG9 |
Pepperl Fuchs Female Connector Field-Attachable FeV1-G-PG9 Technical Specifications
| Specification | Value |
|---|---|
| Operating voltage | max. 250 V AC/DC |
| Operating current | max. 4 A |
| Insulation resistance | min. 100 MΞ© |
| Degree of protection | IP67 |
| Plug connection | connector M12 x 1 : IEC 61076-2-101 |
| Ambient temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Pollution degree | 3 |
| Connection | screw terminals for max. 0.75 mm2/ AWG 18 |
| Mass | 24.54 g |
