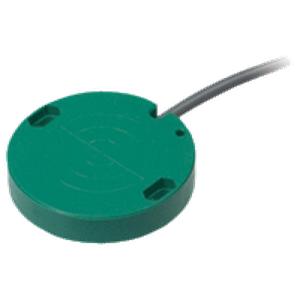

Pepperl Fuchs CJ30-50K10-E0123-Y46139 Proximity Sensor
The Pepperl Fuchs CJ30-50K10-E0123-Y46139 Proximity Sensor offers a 30 mm operating distance, 3-wire, Normally open/closed (NO/NC) switchable, output, cable PUR , 2 m, output, and flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category, this model belongs to the Capacitive sensor.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | CJ30-50K10-E0123-Y46139 |
Pepperl Fuchs CJ30-50K10-E0123-Y46139 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | Normally open/closed (NO/NC) switchable |
| Output type | 3-wire |
| Rated operating distance | 30 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 25 mm |
| Operating voltage | 10 ... 30 V |
| Switching frequency | 0 ... 50 Hz |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | β€ 2.5 V |
| Operating current | 0 ... 150 mA |
| No-load supply current | β€ 15 mA |
| Switching state indicator | Multihole-LED, yellow |
| Ambient temperature | -30 ... 60 Β°C (-22 ... 140 Β°F) |
| Connection type | cable PUR , 2 m |
| Core cross section | 0.25 mm2 |
| Housing material | POM |
| Sensing face | POM |
| Degree of protection | IP67 |
| LED green | - |
| LED yellow | - |
| Storage temperature | - |
| Mass | - |
