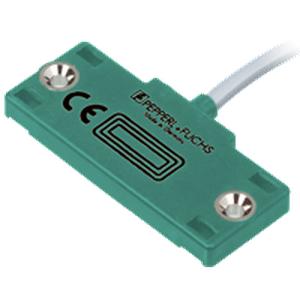

Pepperl Fuchs CBN5-F46-E2: Capacitive Sensors
Technical Specifications of Pepperl Fuchs Capacitive Sensors CBN5-F46-E2:
| Spec | Value |
|---|
| Rated operating distance | 5 mm |
| Output Type | 3-wire |
| Installation | non-flush |
| Connection Type | cable |
Pepperl Fuchs Capacitive Sensors CBN5-F46-E2 Technical Specifications
| Specification | Value |
|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire |
| Rated operating distance | 5 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 3.5 mm |
| Operating voltage | 10 ... 30 V DC |
| Switching frequency | 0 ... 10 Hz |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2 V |
| Operating current | 0 ... 100 mA |
| No-load supply current | ≤ 15 mA |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Connection type | cable |
| Core cross section | - |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| LED green | - |
| LED yellow | - |
| Storage temperature | -40 ... 85 °C (-40 ... 185 °F) |
| Mass | - |
