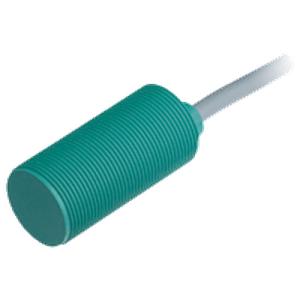

Pepperl Fuchs CBN15-30GK60-A2 Proximity Sensor
The Pepperl Fuchs CBN15-30GK60-A2 Proximity Sensor offers a 15 mm operating distance, 4-wire, complementary, output, cable, output, and non-flush installation. Manufactured by Pepperl Fuchs under the P&F Proximity Sensor category, this model belongs to the Capacitive sensor.
| Brand | Pepperl Fuchs |
| Product Type | Proximity Sensor |
| Model Number | CBN15-30GK60-A2 |
Pepperl Fuchs CBN15-30GK60-A2 Proximity Sensor β Technical Specifications
| Specification | Value |
|---|---|
| Switching function | complementary |
| Output type | 4-wire |
| Rated operating distance | 15 mm |
| Installation | non-flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 12.1 mm |
| Operating voltage | 10 ... 30 V DC |
| Switching frequency | 0 ... 10 Hz |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | β€ 2.8 V |
| Operating current | 0 ... 200 mA |
| No-load supply current | β€ 20 mA |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 Β°C (-13 ... 158 Β°F) |
| Connection type | cable |
| Core cross section | - |
| Housing material | PBT |
| Sensing face | PBT |
| Degree of protection | IP67 |
| LED green | - |
| LED yellow | - |
| Storage temperature | -40 ... 85 Β°C (-40 ... 185 Β°F) |
| Mass | - |
