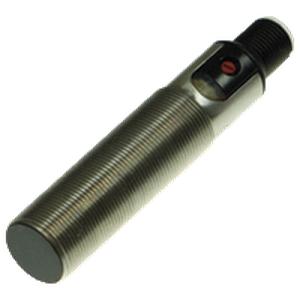

Home Products Proximity Sensor P&F CBB8-18GS75-E2-V1 Pepperl Fuchs CBB8-18GS75-E2-V1: Capacitive Sensors Technical Specifications of Pepperl Fuchs Capacitive Sensors CBB8-18GS75-E2-V1:
Spec Value Rated operating distance 1 ... 8 mm Output Type 3-wire Installation flush Connection Type Connector plug M12 x 1 , 3-pin
Pepperl Fuchs Capacitive Sensors CBB8-18GS75-E2-V1 Technical Specifications Specification Value Switching function Normally open (NO) Output type 3-wire Rated operating distance 1 ... 8 mm Installation flush Output polarity DC Assured operating distance - Operating voltage 10 ... 30 V Switching frequency 0 ... 100 Hz Reverse polarity protection reverse polarity protected Short-circuit protection pulsing Voltage drop β€ 1.5 V Operating current 0 ... 100 mA No-load supply current β€ 18 mA Switching state indicator - Ambient temperature -25 ... 85 Β°C (-13 ... 185 Β°F) Connection type Connector plug M12 x 1 , 3-pin Core cross section - Housing material Stainless steel 1.4305 / AISI 303 Sensing face PBT Degree of protection IP67 LED green Operating display LED yellow indication switching state Storage temperature - Mass -
