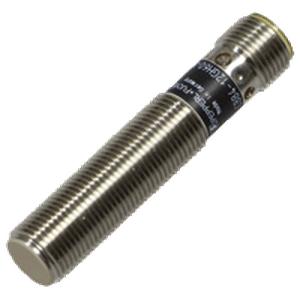

Pepperl Fuchs CBB4-12GH60-E2-V1: Capacitive Sensors
Technical Specifications of Pepperl Fuchs Capacitive Sensors CBB4-12GH60-E2-V1:
| Spec | Value |
|---|
| Rated operating distance | 4 mm |
| Output Type | 3-wire |
| Installation | flush |
| Connection Type | Connector plug M12 x 1 , 4-pin |
Pepperl Fuchs Capacitive Sensors CBB4-12GH60-E2-V1 Technical Specifications
| Specification | Value |
|---|
| Switching function | Normally open (NO) |
| Output type | 3-wire |
| Rated operating distance | 4 mm |
| Installation | flush |
| Output polarity | DC |
| Assured operating distance | 0 ... 2.88 mm |
| Operating voltage | 10 ... 36 V DC |
| Switching frequency | 0 ... 50 Hz |
| Reverse polarity protection | reverse polarity protected |
| Short-circuit protection | pulsing |
| Voltage drop | ≤ 2.5 V |
| Operating current | 0 ... 100 mA |
| No-load supply current | ≤ 12 mA |
| Switching state indicator | LED, yellow |
| Ambient temperature | -25 ... 70 °C (-13 ... 158 °F) |
| Connection type | Connector plug M12 x 1 , 4-pin |
| Core cross section | - |
| Housing material | Stainless steel 1.4404 / AISI 316L |
| Sensing face | PEEK |
| Degree of protection | IP65 |
| LED green | - |
| LED yellow | - |
| Storage temperature | - |
| Mass | - |
