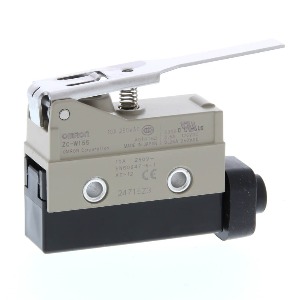

ZC-W2155 : Omron Hinge Roller Lever Limit Switch in Chennai
Technical Specifications of Omron Hinge Roller Lever Limit Switch ZC-W2155:
Shape/Structure: Enclosed Limit switches
Actuator: Hinge roller lever
Contact form: SPDT
Ambient temperature: -10 to 80 ℃
Contact resistance: 15 mΩ max.
Degree of protection: IP67
Load: General load.
Omron Hinge Roller Lever Limit Switch ZC-W2155 Technical Specifications:
| Frequency | 50/60 Hz |
| Insulation resistance | 100 MΩ min. (at 500 VDC) |
| ctuator | Hinge roller lever 12.7 dia. x 7.5 Stainless steel lever, Stainless steel roller |
| Contact resistance (Initial value) | 15 mΩ max. |
| Contact form | SPDT |
| Load | General load |
| Pollution degree | 3 (IEC947-5-1) |
| Ambient temperature | Operating: -10 to 80 ℃ |
| Ambient humidity | 35 to 95% RH |
| Shock resistance | Destruction: 1000 m/s2 |
| Durability | Electrical: 500,000 operations min. Mechanical: 10 million operations min. |
| Degree of protection | IP67 |
The Omron Hinge Roller Lever Limit Switch available at IndMALL in Chennai with the model ZC-W2155, features an enclosed structure for enhanced durability, an SPDT contact form, and a sturdy hinge roller lever actuator, ensuring reliable operation in ambient temperatures ranging from -10 to 80 ℃, with a maximum contact resistance of 15 mΩ, and a robust IP67 degree of protection for general load applications.
