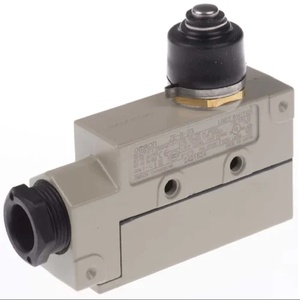

Omron XE-Q21-2 Limit Switch
The Omron XE-Q21-2 Limit Switch offers Crossroller plunger actuator, General purpose shape, Side mounting mounting. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the XE Series.
| Brand | Omron |
| Product Type | Limit Switch |
| Product | XE-Q21-2 |
Omron XE-Q21-2 Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Shape/Structure | General purpose |
| Actuator | Crossroller plunger |
| Built-in Switch | SPDT (DC) |
| Mounting Direction | Side mounting |
| Operating speed | 0.01 mm/s to 0.5 m/s |
| Operating frequency | Mechanical: 120 operations/min Electrical: 20 operations/min |
| Rated frequency | 50/60 Hz |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Contact resistance | 15 mΞ© max. (initial value) |
| Dielectric strength | Between terminals of the same polarity: 1,000 VAC, 50/60 Hz for 1 min Between current-carrying metal part and ground: 1,500 VAC, 50/60 Hz for 1 min Between each terminal and non-current-carrying metal part: 1,500 VAC, 50/60 Hz for 1 min |
| Ambient temperature | β10Β°C to +80Β°C (with no icing) |
| Ambient humidity | General-purpose type: 35% to 85%RH Sealed type: 35% to 95%RH |
| Durability | Mechanical: 1,000,000 operations min. Electrical: 100,000 operations min., for 10 A, 125 VDC resistive load |
| Vibration resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Destruction: 1,000m/s2 max. Malfunction: 100 m/s2 max. 50 m/s2 max |
| Degree of protection | IP65 |
| Weight | Approx. 260 to 280 g |
The Omron XE-Q21-2 is a durable limit switch designed for precision detection in industrial applications. It features a crossroller plunger actuator for accurate mechanical response and uses a single-pole double-throw (SPDT) contact system. With a side-mounting configuration and general-purpose enclosure, itβs ideal for integration into machines, conveyors, and position-detection mechanisms.
This switch operates at speeds from 0.01 mm/s to 0.5 m/s and withstands up to 120 mechanical operations and 20 electrical operations per minute. Built to handle 10 A at 125 VDC resistive load, it offers mechanical durability of 1 million cycles and electrical durability of 100,000 operations. It functions reliably in ambient temperatures from β10Β°C to +80Β°C and humidity levels up to 95% (sealed type). The XE-Q21-2 is built with a robust structure that resists vibration, shock, and dust, featuring a sealed body rated to IP65 protection.
