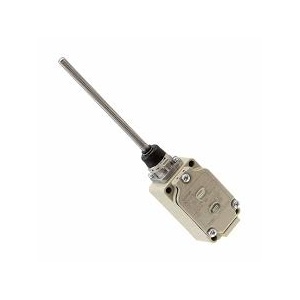

Omron WLNJ-LD-N Limit Switch
The Omron WLNJ-LD-N Limit Switch offers Coil spring (6.5 dia.) actuator, Screw terminals
(Conduit size: GΒ½) shape, LED (With operation indicator). Manufactured by Omron under the Omron Limit Switch category, this model belongs to the WL Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | WLNJ-LD-N |
Omron WLNJ-LD-N Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Terminal Shape | Screw terminals (Conduit size: GΒ½) |
| Pretravel Pt | 20Β±10 mm |
| Minimum Applicable Load | 5 VDC 1 mA, resistive load, P level |
| Rated Voltage | 10 to 115 VAC/DC |
| Leakage Current Reference Value | Approx. 0.4 mA at 10 VAC/DC Approx. 0.5 mA at 115 VAC/DC |
| Indicator | LED (With operation indicator) |
| Ambient Temperature | -10 to +80Β°C (with no icing) |
| Ambient Humidity | 35 to 95%RH |
| Shock Resistance | Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Insulation Resistance | 100 MΞ© min. (at 500 VDC) |
| Actuator | Coil spring (6.5 dia.) |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Contact Resistance | 25 mΞ© max. (initial value for the built-in switch) |
| Rated Frequency | 50/60 Hz |
The Omron WLNJ-LD-N is a precision two-circuit limit switch designed for low-load switching applications in harsh industrial environments. It features a 6.5 mm diameter coil spring actuator and screw terminals with a GΒ½ conduit size for reliable wiring. The switch operates at low voltages from 10 to 115 VAC/DC and supports microloads down to 5 VDC, 1 mA (P level).
An integrated LED provides clear visual confirmation of operation status. The unit offers a wide operating temperature range of β10Β°C to +80Β°C and supports up to 95% relative humidity. Withstand ratings include vibration (10β55 Hz) and shock (1,000 m/sΒ² destruction, 300 m/sΒ² malfunction), ensuring stable operation under mechanical stress. It maintains insulation resistance β₯100 Mβ¦ and contact resistance β€25 mβ¦. The WLNJ-LD-N is ideal for precision feedback in compact machines and offers long-lasting performance with IP67 protection.
