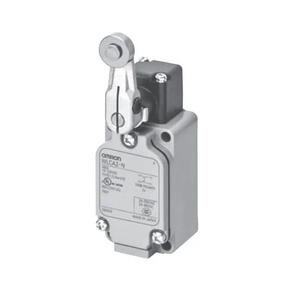

Omron WLCA12-N Limit Switch
The Omron WLCA12-N Limit Switch offers Adjustable roller lever(R25 to 89 mm) actuator, Screw terminals
(Conduit size: G½) shape, Without operation indicator. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the WL Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | WLCA12-N |
Omron WLCA12-N Limit Switch – Technical Specifications
| Specification | Value |
|---|---|
| Terminal Shape | Screw terminals (Conduit size: G½) |
| Pretravel Pt | 15±5° |
| Indicator | Without operation indicator |
| Ambient Temperature | -10 to +80°C (with no icing) |
| Ambient Humidity | 35 to 95%RH |
| Shock Resistance | Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Insulation Resistance | 100 MΩ min. (at 500 VDC) |
| Actuator | Adjustable roller lever(R25 to 89 mm) |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Contact Resistance | 25 mΩ max. (initial value for the built-in switch) |
| Rated Frequency | 50/60 Hz |
The Omron WLCA12-N is a rugged two-circuit limit switch designed for precision detection in industrial environments. It features an adjustable roller lever actuator (R25 to 89 mm) for flexible mechanical positioning and control. The switch is equipped with screw terminals and a G½ conduit entry for secure wiring and easy installation.
With a rated insulation resistance of 100 MΩ (at 500 VDC) and contact resistance of 25 mΩ max, it ensures reliable electrical connectivity. Operating temperatures range from −10°C to +80°C with up to 95% humidity. The switch handles vibration (10–55 Hz, 1.5 mm double amplitude) and shock loads up to 1,000 m/s² during destruction testing, making it suitable for harsh settings.
Durable and compact, the WLCA12-N is ideal for use in conveyors, machinery, and safety mechanisms requiring dependable operation and long-term durability with IP67 protection.
