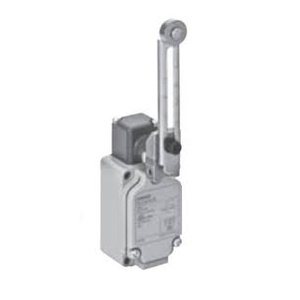

Omron WLCA12-2NLD-N Limit Switch
The Omron WLCA12-2NLD-N Limit Switch offers Adjustable roller lever(R25 to 89 mm) actuator, Screw terminals
(Conduit size: GΒ½) shape, LED (With operation indicator). Manufactured by Omron under the Omron Limit Switch category, this model belongs to the WL Series.
| Brand | Omron |
| Product | Limit Switch |
| Model Number | WLCA12-2NLD-N |
Omron WLCA12-2NLD-N Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Terminal Shape | Screw terminals (Conduit size: GΒ½) |
| Pretravel Pt | 20Β° max. |
| Minimum Applicable Load | 5 VDC 1 mA, resistive load, P level |
| Rated Voltage | 10 to 115 VAC/DC |
| Leakage Current Reference Value | Approx. 0.4 mA at 10 VAC/DC Approx. 0.5 mA at 115 VAC/DC |
| Indicator | LED (With operation indicator) |
| Ambient Temperature | -10 to +80Β°C (with no icing) |
| Ambient Humidity | 35 to 95%RH |
| Shock Resistance | Destruction: 1,000 m/s2 min. Malfunction: 300 m/s2 min. |
| Degree Of Protection | IP67 |
| Insulation Resistance | 100 MΞ© min. (at 500 VDC) |
| Actuator | Adjustable roller lever(R25 to 89 mm) |
| Vibration Resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Contact Resistance | 25 mΞ© max. (initial value for the built-in switch) |
| Rated Frequency | 50/60 Hz |
The Omron WLCA12-2NLD-N is a two-circuit limit switch featuring an adjustable roller lever with a sensing range of R25 to R89 mm. It is designed for use in automation systems requiring precise and reliable limit detection. The unit includes screw terminals with a GΒ½ conduit entry, allowing secure and flexible wiring in industrial panels or machines.
Equipped with a built-in LED operation indicator, it offers quick visual status monitoring. The switch supports a wide operating voltage range of 10 to 115 VAC/DC and handles microloads as low as 5 VDC, 1 mA (P-level). It offers excellent insulation resistance (100 MΞ© min.) and low contact resistance (25 mΞ© max.). Operating in harsh conditions from β10Β°C to +80Β°C with high humidity (up to 95%), the WLCA12-2NLD-N withstands vibration and shock during operation. Its sealed construction ensures long-term field performance with IP67 protection.
