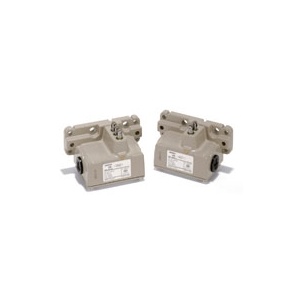

Omron VB-2111 Limit Switch
The Omron VB-2111 Limit Switch offers Bevel plunger actuator, 2 plungers, 0.1 mm to 0.5 m/s speed. Manufactured by Omron under the Omron Limit Switch category, this model belongs to the VB Series.
| Brand | Omron |
| Product Type | Limit Switch |
| Product | VB-2111 |
Omron VB-2111 Limit Switch β Technical Specifications
| Specification | Value |
|---|---|
| Actuator | Bevel plunger |
| Number of Plungers | 2 plungers |
| Shape of box | With flange |
| Conduit | Two on the side |
| Operating speed | 0.1 mm to 0.5 m/s |
| Operating frequency | Mechanical: 120 operations min. Electrical: 30 operations min. |
| Rated frequency | 50/60 Hz (AC) |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Contact resistance | 15 mΞ© max. (initial value) |
| Rated insulation voltage (Ui) | 300 VAC |
| Ambient temperature | β10Β°C to 80Β°C (with no icing) |
| Ambient humidity | 35% to 95% |
| Durability | Mechanical: 5,000,000 operations min. Electrical: 300,000 operations min. (10 A at 250 VAC, resistive load) |
| Vibration resistance | Malfunction: 10 to 55 Hz, 1.5-mm double amplitude |
| Shock resistance | Destruction: 1,000 m/s2 min. Malfunction: 200 m/s2 min. |
| Degree of protection | IP67 |
| Weight | Approx. 580 g |
The Omron VB-2111 is a rugged multiple limit switch designed for high-load applications and long-term mechanical durability. It features a bevel plunger actuator and a two-plunger mechanism with flange mounting for stable installation. The unit supports switching speeds from 0.1 mm/s to 0.5 m/s and operates reliably in environments ranging from β10Β°C to 80Β°C, with ambient humidity up to 95%.
This model handles loads up to 10 A at 250 VAC (resistive), making it suitable for heavy industrial machinery. It offers a mechanical life of over 5 million operations and an electrical life of 300,000 operations. With low contact resistance (15 m⦠max) and high insulation resistance (100 M⦠min at 500 VDC), the VB-2111 ensures dependable switching over time. IP67-rated sealing protects the housing from dust and water, while the side-wired design simplifies installation in space-restricted panels or equipment.
