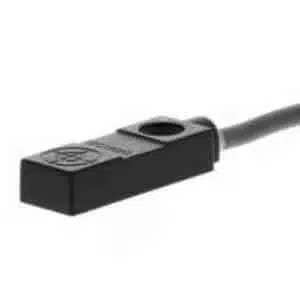

TL-W3MC2 2M - Omron Flat Inductive Proximity Sensor
TL-W3MC2 2M is a compact Omron Flat Inductive Proximity Sensor offering a 3 mm sensing range with NPN NC output. Built for precision detection of ferrous metals, it features IP67 protection, a red LED indicator, and reverse polarity safeguards. The Omron TL-W3MC2 2M delivers reliable sensing in harsh industrial setups.
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Proximity Sensors |
| Product | TL-W3MC2 2M |
🛠️ Get Quotes Instantly from Omron Vendors
Omron Flat Inductive Proximity Sensor TL-W3MC2 2M Technical Specifications:
| Specification | Value |
|---|---|
| Mounting type | Unshielded |
| Sensing Distance | 3 mm |
| Setting distance | 0 to 2.4 mm |
| Output type | DC 3-wire, NPN |
| Operation mode | NC |
| Power supply | 12 to 24 VDC (10 to 30 VDC), ripple (p-p): 10% max. |
| Connection method | Pre Wired Cable Length 2M |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal |
| Standard target | Iron, 12 × 12 × 1 mm |
| Response frequency | 600 Hz min. |
| Current consumption | 15 mA max. at 24 VDC (no-load) |
| Indicator | Detection indicator (red) |
| Protection circuit | Reverse polarity protection, Surge suppressor |
| Ambient temperature range | Operating/Storage: −25 to 70°C (with no icing or condensation) |
| Ambient humidity | Operating/Storage: 35% to 95% (with no condensation) |
| Temperature influence | ±10% max. of sensing distance at 23°C in the temperature range of −25 to 70°C |
| Voltage influence | ±2.5% max. of sensing distance at rated voltage in rated voltage ±10% range |
| Insulation resistance | 50 MΩ min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 500 m/s2 3 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
| Weight | Approx. 70 g |
Omron is a globally trusted leader in factory automation, delivering intelligent sensing solutions with cutting-edge design. The Omron TL-W3MC2 2M stands out for its rugged flat body, dependable sensing capability, and performance under tough industrial conditions. As part of the advanced Omron Flat Inductive Proximity Sensor series, the TL W3MC2 2M ensures accurate metal detection in compact spaces.
The Omron TL-W3MC2 2M features an Unshielded design with a 3 mm sensing distance and NC output configuration via a DC 3-wire NPN interface. It supports a 12–24 VDC power supply and includes protection circuits for surge and reverse polarity. The body is rated IP67 and can withstand vibration, shock, and extreme temperatures. For full specifications, refer to the official Omron product page.
With fast 600 Hz response frequency and reliable performance in temperatures from −25 to 70°C, the TL W3MC2 2M is well-suited for detection tasks in robotics, packaging machines, conveyors, and metal stamping lines. The flat housing design makes it ideal for tight installation spaces. Industrial engineers prefer the Omron TL-W3MC2 2M for robust sensing, making it a top-tier Omron Flat Inductive Proximity Sensor.
