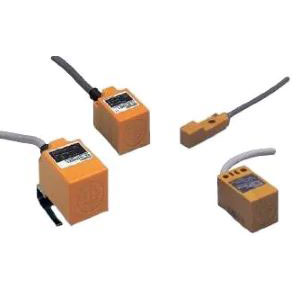

Omron TL-N20MD1 2M Proximity Sensor
The Omron TL-N20MD1 2M Proximity Sensor offers Inductive, Unshielded, 20 mm Sensing distance, DC 2-Wire NO Output, Pre Wired Cable Length 2M, 12 to 24 VDC. Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron TL Series.
| Brand | Omron |
| Product | Proximity Sensors |
| Model Number | TL-N20MD1 2M |
Omron TL-N20MD1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Sensor | Rectangular |
| Mounting | Unshielded |
| Sensing Distance | 20 mm |
| Setting Distance | 0 to 16 mm |
| Output Configuration | DC 2-Wire |
| Operation Mode | NO |
| Connection | Pre Wired Cable Length 2M |
| Power Supply Voltage | 12 to 24 VDC. |
| Standard Target | Iron, 50 Γ 50 Γ 1 mm |
| Leakage Current | 0.8 mA max. |
| Differential Travel | 10% max. of sensing distance |
| Detectable Object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Response Frequency | 300 Hz |
| Indicator | Operation indicator (red), Setting indicator (green) |
| Protection Circuit | Load short-circuit protection, Surge suppressor |
| Ambient Temperature Range | Operating: β25 to 70Β°C, Storage: β40 to 85Β°C (with no icing or condensation) |
| Ambient Humidity Range | Operating/Storage: 35% to 95% (with no condensation) |
| Insulation Resistance | Β±10% max. of sensing distance at 23Β°C in the temperature range of β25 to 70Β°C |
| Dielectric Strength | 50 MΞ© min. (at 500 VDC) between current-carrying parts and case |
| Vibration Resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock Resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Voltage Influence | Β±2.5% max. of sensing distance at rated voltage in rated voltage Β±10% range |
| Degree Of Protection | IP67 |
| Weight | Approx. 330 g |
The Omron TL-N20MD1 2M is often compared with other models in the TL Series Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron TL-N10MY1 2M (10 mm Sensing Distance, AC 2-wire, NO, Pre Wired Cable Length 2M), Omron TL-N12MD2 2M (12 mm Sensing Distance, DC 2-Wire, NC, Pre Wired Cable Length 2M), and Omron TL-Q5MC1 2M (5 mm Sensing Distance, DC 3-wire, NPN, NO, Pre Wired Cable Length 2M) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The TL-N20MD1 2M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
