Omron TL-N12MD1 2M Proximity Sensor
The Omron TL-N12MD1 2M Proximity Sensor offers Inductive, Unshielded, 12 mm Sensing distance, DC 2-Wire NO Output, Pre Wired Cable Length 2M, 12 to 24 VDC. Power supply voltage. Manufactured by Omron under the Omron Proximity Sensors category, this model belongs to the Omron TL Series.
| Brand | Omron |
| Product Type | Proximity Sensors |
| Model Number | TL-N12MD1 2M |
Omron TL-N12MD1 2M Proximity Sensor - Technical Specifications
| Specification | Value |
|---|---|
| Mounting type | Unshielded |
| Sensing Distance | 12 mm |
| Setting distance | 0 to 9.6 mm |
| Output type | DC 2-Wire |
| Operation mode | NO |
| Power supply | 12 to 24 VDC. |
| Connection method | Pre Wired Cable Length 2M |
| Differential travel | 10% max. of sensing distance |
| Detectable object | Ferrous metal (The sensing distance decreases with non-ferrous metal.) |
| Standard target | Iron, 40 Γ 40 Γ 1 mm |
| Response frequency | 500 Hz |
| Leakage current | 0.8 mA max. |
| Indicator | Operation indicator (red), Setting indicator (green) |
| Protection circuit | Load short-circuit protection, Surge suppressor |
| Ambient temperature range | Operating: β25 to 70Β°C, Storage: β40 to 85Β°C (with no icing or condensation) |
| Ambient humidity | Operating/Storage: 35% to 95% (with no condensation) |
| Temperature influence | Β±10% max. of sensing distance at 23Β°C in the temperature range of β25 to 70Β°C |
| Voltage influence | Β±2.5% max. of sensing distance at rated voltage in rated voltage Β±10% range |
| Insulation resistance | 50 MΞ© min. (at 500 VDC) between current-carrying parts and case |
| Dielectric strength | 1,000 VAC, 50/60 Hz for 1 min between current-carrying parts and case |
| Vibration resistance | Destruction: 10 to 55 Hz, 1.5-mm double amplitude for 2 hours each in X, Y, and Z directions |
| Shock resistance | Destruction: 1,000 m/s2 10 times each in X, Y, and Z directions |
| Degree of protection | IP67 |
| Weight | Approx. 235 g |

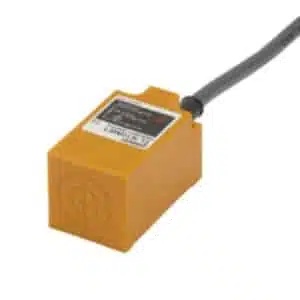

The Omron TL-N12MD1 2M is often compared with other models in the TL Series Proximity Sensor group due to shared installation characteristics and consistent sensing behavior. Engineers frequently evaluate Omron TL-N5MY1 2M (5 mm Sensing Distance, AC 2-wire, NO, Pre Wired Cable Length 2M), Omron TL-N7MD1 2M (7 mm Sensing Distance, DC 2-Wire, NO, Pre Wired Cable Length 2M), and Omron TL-N10ME1 2M (10 mm Sensing Distance, DC 3-wire, NPN, NO, Pre Wired Cable Length 2M) when selecting suitable alternatives. This ensures compatibility when matching size, sensing distance, wiring style, output logic, or connector format. The TL-N12MD1 2M integrates smoothly into machinery, fixtures, conveyors, and automation systems requiring dependable detection from an Omron Proximity Sensor.
