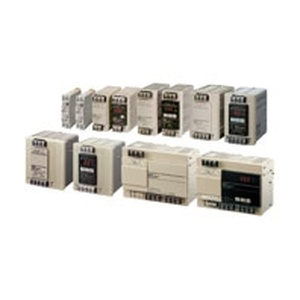

Omron S8VS-09024BP Power Supply
The Omron S8VS-09024BP Power Supply converts a 100 to 240 VAC, 50/60 Hz input into a 24 VDC output at 3.75 A, providing 90 W of DC power for compatible industrial equipment. DIN rail mounting enables the unit to become part of an organized control-panel layout, while screw terminals provide secure wiring connections for the power circuits. Its electrical capacity supports 24 VDC control loads used in automated machines and related industrial systems. The S8VS-09024BP establishes the model-to-series relationship with the S8VS Series. It can also be compared with other 24V SMPS models associated with Omron industrial controls for sensing, switching, control, and machine automation.
| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VS-09024BP |
Omron S8VS-09024BP Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 90 W |
| Output voltage | 24 VDC |
| Rated output current | 3.75 A |
| Terminal type | Screw Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 83% typ. (at 100 VAC input) 85% typ. (at 200 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 2.3 A max., 1.9 A typ. (at 100 VAC input) 1.4 A max., 1.2 A typ. (at 200 VAC input) |
| Input Leakage current | 0.5 mA max. (at 100 VAC input) 1.0 mA max. (at 200 VAC input) |
| Input Frequency | 50/60Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15% With V.ADJ |
| Start-up time | 660 ms typ. (at 100 VAC input) 420 ms typ. (at 200 VAC input) |
| Hold time | 28 ms typ. (at 100 VAC input) 136 ms typ. (at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -10 to 60 ? |
| Ambient temperature (Storage) | -25 to 65 ? |
| Ambient humidity (OperatingStorage) | 25 to 85% |
| Cooling fan | No |
| Weight | 490 g max. |
The Omron S8VS-09024BP is frequently evaluated with other models in the Omron Switch Mode Power Supply group, as these SMPS units share similar behaviour in thermal response, wiring layout, load handling, and rated input characteristics. Engineers often compare related models such as Omron S8VS-01524 (15 W, 24 VDC, 100 to 240 VAC, 0.65 A, DIN rail), Omron S8VS-12024BE (120 W, 24 VDC, 100 to 240 VAC, 5 A, DIN rail) when designing power rails for automation cabinets, motion drives, PLC racks, or distributed I/O stations. Analysing differences in power rating, output voltage behaviour, mounting format, rated input voltage, and continuous output current helps ensure voltage stability under diverse machine loads. The S8VS-09024BP integrates smoothly into conveyors, dosing modules, electrical frames, and industrial panels where a dependable Omron SMPS Power Supply is required.
