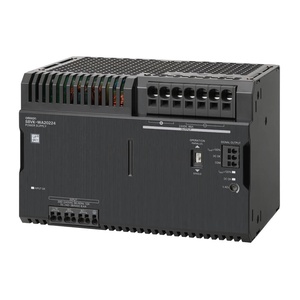

Omron S8VK-WA24024 Power Supply
Omron S8VK-WA24024 SMPS is a 240 W switch mode power supply configured to provide 24 VDC with 10 A rated output current. It accepts 200 to 240 VAC input at 50/60 Hz and supports three-phase, single-phase, or two-phase connections. DIN rail mounting provides structured panel installation, while Push-In Plus terminals and terminal blocks provide the electrical connections. Typical efficiency is specified at 93% with three-phase 200 VAC and three-phase 230 VAC input. A green LED provides output status indication. The 24 VDC output and 10 A rating define this 240 W configuration within the series. Within the S8VK-WA Series, the S8VK-WA24024 provides a DIN rail 240 W, 24 VDC configuration. Compare other 240W industrial power supplies from Omron machine control products.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8VK-WA24024 |
Omron S8VK-WA24024 Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 240 W |
| Output voltage | 24 VDC |
| Rated output current | 10 A |
| Terminal type | Push-In Plus Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 93 % typ.(at three-phase 200 VAC input) 92 % typ.(Single-phase/two-phase 200 VAC input Single-phase/two-phase 200 VAC input) 93 % typ.(at three-phase 230 VAC input) 93 % typ.(Single-phase/two-phase 230 VAC input) |
| Rated input voltage | 200 to 240 VAC(Three-phase/single-phase/two-phase) |
| Rated input current | 0.80 A typ.(at three-phase 200 VAC input) 1.4 A typ.(Single-phase/two-phase 200 VAC input Single-phase/two-phase 200 VAC input) 0.70 A typ.(at three-phase 230 VAC input) 1.2 A typ.(Single-phase/two-phase 230 VAC input) |
| Input Leakage current | 1.0 mA max.(at three-phase 200 VAC input) 1.0 mA max.(at three-phase 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (LED: Green) |
| Output voltage variable range | 24 to 29.5 V (with V.ADJ) |
| Start-up time | 1000 ms max.(at three-phase 200 VAC input) 1000 ms max.(at three-phase 230 VAC input) |
| Hold time | 35 ms typ.(at three-phase 200 VAC input) 35 ms typ.(at three-phase 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, maximum 5 G, 0.42 mm single amplitude for 2 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | ?40 to 70°C |
| Ambient temperature (Storage) | ?40 to 85°C |
| Ambient humidity (OperatingStorage) | 95% max. (Storage humidity: 95% max.) |
| Cooling fan | No |
| Degree of protection | IP20 by EN/IEC 60529 |
| Weight | 800 g max. |
The Omron S8VK-WA24024 Power Supply provides 240 W rated power with a 24 VDC output and 10 A rated current. It accepts 200 to 240 VAC input at 50/60 Hz and supports three-phase, single-phase, or two-phase connections. DIN rail mounting, Push-In Plus terminals, and terminal blocks provide the installation and wiring arrangement. Typical efficiency is specified at 93% with three-phase 200 VAC and three-phase 230 VAC input. These values define a 24 VDC supply where connected load voltage, total current demand, phase arrangement, rail space, and terminal access should be reviewed together. Connected equipment should require 24 VDC and keep continuous current demand within the rated 10 A output.
Models in the S8VK-WA family can retain the same 24 VDC output while increasing available current as rated power rises. This makes wattage and current useful comparison points after output voltage has been confirmed. A 480 W configuration doubles the stated current capacity from 10 A to 20 A while retaining DIN rail mounting and Push-In Plus terminals. For a higher-capacity 24 VDC model, compare the Omron S8VK-WA48024.
