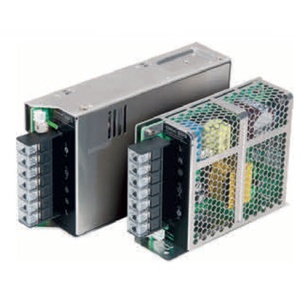

Omron S8FS-G60048CD Power Supply
Omron S8FS-G60048CD SMPS is a 600 W switch mode power supply designed to provide 48 VDC with a rated output current of 13 A. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with screw terminals for organized electrical-panel installation. Typical efficiency is specified at 88% with 100 VAC input and 92% with both 200 VAC and 230 VAC input. The DIN rail arrangement combines higher-voltage DC output with structured cabinet mounting and fixed terminal wiring. Output voltage, current demand, rail space, and source compatibility should therefore be considered together. Within the S8FS-G Series, the S8FS-G60048CD provides a DIN rail 600 W, 48 VDC configuration. Compare other 600W 48V SMPS from Omron machine automation.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-G60048CD |
Omron S8FS-G60048CD Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 600 W |
| Output voltage | 48 VDC |
| Rated output current | 13 A |
| Terminal type | Screw Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 88 % typ.(at 100 VAC input) 92 % typ.(at 200 VAC input) 92 % typ.(at 230 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 7.7 A typ.(at 100 VAC input) 3.8 A typ.(at 200 VAC input) |
| Input Leakage current | 0.5 mA max.(at 100 VAC input) 1 mA max.(at 200 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10 to +15 % (With V.ADJ) |
| Start-up time | 1000 ms max.(at 100 VAC input) 1000 ms max.(at 200 VAC input) |
| Hold time | 30 ms typ.(at 100 VAC input) 30 ms typ.(at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 4.5 G max., 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -20 to 70 ? |
| Ambient temperature (Storage) | -25 to 75 ? |
| Ambient humidity (OperatingStorage) | 90 %RH max. |
| Cooling fan | Yes |
| Weight | 1050 g max. |
The Omron S8FS-G60048CD Power Supply provides 600 W rated power with a 48 VDC output and 13 A rated current. It accepts 100 to 240 VAC input at 50/60 Hz and uses DIN rail mounting with screw terminals and terminal blocks for structured cabinet installation. Typical efficiency is specified at 88% with 100 VAC input and 92% with both 200 VAC and 230 VAC input. These electrical values define a higher-capacity DIN rail 48 VDC supply where connected load voltage, current demand, source compatibility, rail space, and terminal access should be considered together. The connected equipment should require 48 VDC and keep combined current demand within the rated 13 A output. DIN rail space should therefore be checked before installation.
The incoming AC range describes source compatibility separately from the 48 VDC requirement of connected loads, while screw terminals provide fixed connection points for wiring. Comparing models from a different voltage class should focus first on output compatibility rather than wattage alone. Such comparisons show product-family range rather than direct substitution. For a 300 W direct-mount model delivering 24 VDC at 14 A, compare the Omron S8FS-G30024C.
