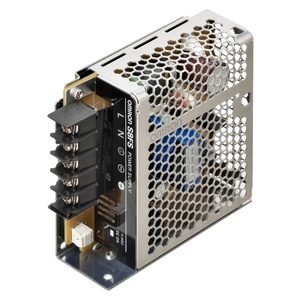

Omron S8FS-C05024D Power Supply

Omron S8FS-C05024D SMPS is a 50 W switch mode power supply configured to provide 24 VDC for industrial control systems. It delivers 2.2 A rated output current and accepts single-phase 85 to 264 VAC or 120 to 370 VDC input at 50/60 Hz. DIN rail mounting supports structured panel installation, while screw terminals provide fixed input and output wiring. Typical efficiency is specified at 86% with both 115 VAC and 230 VAC input. A green indicator provides output status during operation. Within the S8FS-C Series, the S8FS-C05024D provides a DIN rail 50 W, 24 VDC configuration. Compare other 24V SMPS models from Omron automation equipment.

Omron S8FS-C05024D Power Supply
BrandOmron
ProductPower Supply
Model NumberS8FS-C05024D

Omron S8FS-C05024D Power Supply - Technical Specifications

SpecificationValue
Power rating50 W
Output voltage24 VDC
Rated output current2.2 A
Terminal typeScrew Terminal
Mounting methodDIN rail
ConnectionTerminal blocks
Efficiency86 % typ.(at 115 VAC input) 86 % typ.(at 230 VAC input)
Rated input voltageSingle phase 85 to 264 VAC, 120 to 370 VDC
Rated input current0.97 A typ.(at 115 VAC input) 0.59 A typ.(at 230 VAC input)
Input Leakage current0.25 A typ.(at 115 VAC input) 0.55 A typ.(at 230 VAC input)
Input Frequency50/60 Hz
Output indicatorYes (color: green)
Output voltage variable range-10% to 10% (with V. ADJ)
Start-up time710 ms max.(at 115 VAC input) 640 ms max.(at 230 VAC input)
Hold time14 ms max.(at 115 VAC input) 77 ms max.(at 230 VAC input)
Vibration resistance10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions
Shock resistance150 m/s2, 3 times each in ±X, ±Y, ±Z directions
Ambient temperature (Operating)-20 to 60°C
Ambient temperature (Storage)-40 to 85°C
Ambient humidity (OperatingStorage)20% to 90% (Storage humidity: 10% to 95%)
Cooling fanNo
Weight300 g max.

The Omron S8FS-C05024D Power Supply provides 50 W rated power with a 24 VDC output and 2.2 A rated current for industrial control systems. It accepts single-phase 85 to 264 VAC or 120 to 370 VDC input at 50/60 Hz. DIN rail mounting supports structured installation inside electrical panels, while screw terminals provide fixed input and output wiring. Typical efficiency is specified at 86% with both 115 VAC and 230 VAC input. Typical input current is 0.97 A at 115 VAC and 0.59 A at 230 VAC. A green indicator provides output status. Start-up time is specified at 710 ms maximum with 115 VAC input and 640 ms maximum with 230 VAC input.

Operating temperature extends from -20°C to 60°C, while storage temperature ranges from -40°C to 85°C. Operating humidity is specified from 20% to 90%. Vibration resistance covers 10 to 55 Hz and 10 to 500 Hz under the stated test conditions, while shock resistance is rated at 150 m/s². Selection should confirm the required 24 VDC output and ensure that connected current remains within 2.2 A. The allowable input supply, DIN rail space, screw-terminal access, and operating conditions should also match the panel requirements. For a lower-power DIN rail model specified at 15 W with 12 VDC and 1.3 A output, see Omron S8FS-G01512CD.
