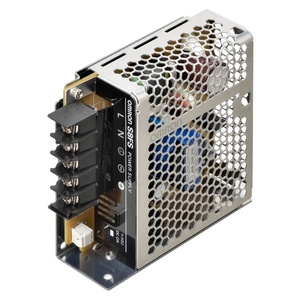

Omron S8FS-C03524 Power Supply
Omron S8FS-C03524 SMPS is a 35 W switch mode power supply designed to provide 24 VDC for industrial control equipment. It delivers 1.5 A rated output current and uses single-phase input, direct mounting, and screw terminals for fixed panel installation. The metal-frame unit has a stated efficiency of 87% and supports 100 to 240 VAC rated input, with allowable ranges of 85 to 264 VAC and 120 to 370 VDC. Its dimensions are 36 mm wide, 97 mm high, and 99 mm deep, with the terminal block facing upward. Within the S8FS-C Series, the S8FS-C03524 provides a direct-mount 35 W, 24 VDC configuration. Compare other 35W 24V power supplies from Omron machine control products.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-C03524 |
Omron S8FS-C03524 Power Supply – Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 35 W |
| Output voltage | 24V |
| Rated output current | 1.5 A |
| Terminal type | Screw |
| Phase | Single |
| Number of output branches | 1 |
| Allowable supply voltage DC | 120-370V |
| Mounting method | Direct mounting |
| Type | Metal frame |
| Efficiency | 87% |
| Temperature range | -20-60? |
| Rated supply voltage at AC 50 Hz | 100-240 V |
| Height | 36mm |
| Width | 97mm |
| Depth | 99mm |
| Features | Terminal block facing upward |
| Allowable supply voltage AC | 85-264V |
The Omron S8FS-C03524 Power Supply provides 35 W rated power with a 24 VDC output and 1.5 A rated current for industrial control circuits. It uses single-phase input, direct mounting, and screw terminals in a metal-frame construction. Rated input voltage is 100 to 240 VAC, with an allowable AC range of 85 to 264 V and an allowable DC range of 120 to 370 V. Efficiency is specified at 87%. The enclosure measures 36 mm wide, 97 mm high, and 99 mm deep, with the terminal block facing upward. These specifications define how the power supply fits electrically and mechanically into a panel, where output requirement, available current, mounting surface, cabinet depth, and wiring direction must be considered together.
The S8FS-C03524 should be selected for equipment requiring 24 VDC within its 1.5 A output capacity. Direct mounting allows the unit to be fixed to the panel without a DIN rail, so the available mounting surface should be confirmed before installation. The allowable AC and DC input ranges also define the incoming supply conditions supported by the unit. Its upward-facing terminal block requires suitable wiring clearance, while the 99 mm depth should be checked against enclosure dimensions. When comparing options, keep 24 VDC constant and then evaluate required current, rated power, mounting format, and dimensions. For the same 24 VDC output with higher 100 W power and 4.5 A capacity, see Omron S8FS-C10024J.
