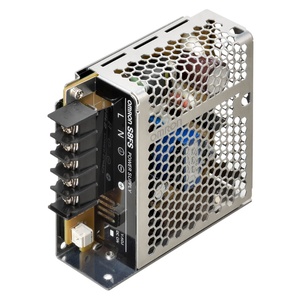

Omron S8FS-C02512 Power Supply
Omron S8FS-C02512 SMPS is a 25 W switch mode power supply designed to provide 12 VDC power for industrial control equipment. It delivers 2.1 A rated output current and accepts single-phase 85 to 264 VAC or 120 to 370 VDC input. DIN rail mounting supports organized installation inside electrical panels, while screw terminals provide fixed input and output connections. Typical efficiency is specified at 84% with 115 VAC input and 86% with 230 VAC input. A green indicator provides output status, and the unit operates at 50/60 Hz. Within the S8FS-C Series, the S8FS-C02512 provides a 12 VDC configuration. Compare other 12V power supplies from Omron automation equipment.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8FS-C02512 |
Omron S8FS-C02512 Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 25 W |
| Output voltage | 12 VDC |
| Rated output current | 2.1 A |
| Terminal type | Screw Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 84 % typ.(at 115 VAC input) 86 % typ.(at 230 VAC input) |
| Rated input voltage | Single phase 85 to 264 VAC, 120 to 370 VDC |
| Rated input current | 0.49 A typ.(at 115 VAC input) 0.3 A typ.(at 230 VAC input) |
| Input Leakage current | 0.10 A typ.(at 115 VAC input) 0.20 A typ.(at 230 VAC input) |
| Input Frequency | 50/60 Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | -10% to 10% (with V. ADJ) |
| Start-up time | 390 ms max.(at 115 VAC input) 360 ms max.(at 230 VAC input) |
| Hold time | 17 ms max.(at 115 VAC input) 103 ms max.(at 230 VAC input) |
| Vibration resistance | 10 to 55 Hz, 0.375-mm half amplitude for 2 h each in X, Y, and Z directions 10 to 500 Hz, 0.26-mm half amplitude for 1 h each in X, Y, and Z directions |
| Shock resistance | 150 m/s2, 3 times each in ±X, ±Y, ±Z directions |
| Ambient temperature (Operating) | -20 to 60°C |
| Ambient temperature (Storage) | -40 to 85°C |
| Ambient humidity (OperatingStorage) | 20% to 90% (Storage humidity: 10% to 95%) |
| Cooling fan | No |
| Weight | 250 g max. |
The Omron S8FS-C02512 Power Supply is a 25 W switch mode power supply providing 12 VDC with 2.1 A rated output current for industrial control equipment. It accepts single-phase 85 to 264 VAC or 120 to 370 VDC input and operates at 50/60 Hz. DIN rail mounting supports installation inside electrical panels, while screw terminals provide fixed input and output connections. Typical efficiency is specified at 84% with 115 VAC input and 86% with 230 VAC input. Rated input current is 0.49 A typical at 115 VAC and 0.3 A typical at 230 VAC. A green indicator provides output status. Start-up time is specified at 390 ms maximum with 115 VAC input and 360 ms maximum with 230 VAC input.
Operating temperature extends from -20°C to 60°C, while storage temperature extends from -40°C to 85°C. Operating humidity is specified from 20% to 90%. Vibration resistance covers 10 to 55 Hz and 10 to 500 Hz under the stated test conditions, while shock resistance is rated at 150 m/s². The 12 VDC output and 2.1 A current capacity are the primary electrical selection points. DIN rail space, terminal access, input supply, and environmental conditions should also be considered when matching the unit to a control panel. For a higher-power configuration specified at 150 W with 36 VDC output, see Omron S8FS-C15036.
