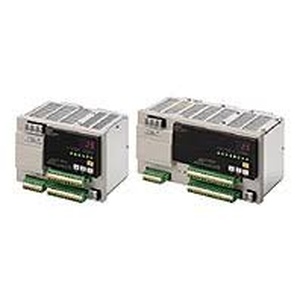

Omron S8AS-24006N Power Supply
Omron S8AS-24006N SMPS is a 240 W switch mode power supply developed for monitored DC distribution in industrial control systems. It accepts 100 to 240 VAC at 50/60 Hz and is specified with a 6 VDC output and 10 A rated current. DIN rail mounting supports installation inside control panels, while screw or screwless terminals provide two wiring options. A green indicator shows output status, and the unit supports multi-output control, current monitoring, alarm signaling, and remote communication. Within the S8AS Series, the S8AS-24006N represents a 240 W monitored SMPS configuration. For comparable industrial DC supplies, browse the 240W power supply range from Omron automation products.

| Brand | Omron |
| Product | Power Supply |
| Model Number | S8AS-24006N |
Omron S8AS-24006N Power Supply - Technical Specifications
| Specification | Value |
|---|---|
| Power rating | 240 W |
| Output voltage | 6 VDC |
| Rated output current | 10 A |
| Terminal type | Screw,Screwless Terminal |
| Mounting method | DIN rail |
| Connection | Terminal blocks |
| Efficiency | 80% typ. (at 100 VAC input) 80% typ. (at 200 VAC input) |
| Rated input voltage | 100 to 240 VAC |
| Rated input current | 3.8 A max. (at 100 VAC input) 2 A max. (at 200 VAC input) |
| Input Leakage current | 0.5 mA max. (at 100 VAC input) 1.0 mA max. (at 200 VAC input) |
| Input Frequency | 50/60Hz |
| Output indicator | Yes (color: green) |
| Output voltage variable range | ±10% (With V.ADJ) |
| Start-up time | 3000 ms typ. (at 100 VAC input) 3000 ms typ. (at 200 VAC input) |
| Hold time | 20 ms min. (at 100 VAC input) 20 ms min. (at 200 VAC input) |
| Vibration resistance | 10 to 55 Hz, 0.375 mm single amplitude in each 3 directions for 2 hours |
| Shock resistance | 150 m/s2, in each 6 directions 3 times |
| Ambient temperature (Operating) | -10 to 60 ? |
| Ambient temperature (Storage) | -25 to 65 ? |
| Ambient humidity (OperatingStorage) | 25 to 85% |
| Cooling fan | No |
| Weight | 1600 g max. |
The Omron S8AS-24006N Power Supply is specified at 240 W for monitored DC distribution in industrial control systems. It accepts 100 to 240 VAC at 50/60 Hz and the supplied specification lists a 6 VDC output with 10 A rated current. DIN rail mounting supports panel installation, while screw or screwless terminals provide flexible electrical connections. Typical efficiency is 80% at both 100 VAC and 200 VAC input. Rated input current is 3.8 A maximum at 100 VAC and 2 A maximum at 200 VAC. Leakage current is specified at 0.5 mA maximum at 100 VAC and 1.0 mA maximum at 200 VAC. A green indicator provides output status for direct checking during operation.
Start-up time is specified at 3000 ms typical for both input conditions, while hold time is at least 20 ms. Operating temperature ranges from -10°C to 60°C, with storage temperature from -25°C to 65°C. Operating humidity is specified from 25% to 85%. Vibration resistance covers 10 to 55 Hz at 0.375 mm single amplitude, and shock resistance is rated at 150 m/s². Selection should consider the required DC output, current demand, monitored distribution functions, input range, terminal type, and available DIN rail space. For a higher-capacity S8AS configuration specified at 480 W with 8 VDC and 20 A output, see Omron S8AS-48008R.
