Omron PLC β Programmable Logic Controllers
Omron PLCs (Programmable Logic Controllers) are widely used in industrial automation for reliable machine control, process automation, and production line management. These PLC systems monitor inputs, process logic, and control outputs to automate machinery and industrial processes with high precision and stability.
The Omron PLC portfolio includes compact PLCs, modular PLCs, and advanced machine automation controllers designed for various industrial applications. On IndMALL, buyers can view Omron PLC series, compare available models, and connect with verified suppliers and dealers offering genuine Omron PLC systems across multiple industrial locations in India.
Omron PLC Series
Omron PLC – CP1L Series
- Program Capacity: 10 Ksteps.
- Instructions: Approximately 500.
- I/O Points: Up to 180, model-dependent.
- High-Speed Counters: Up to 100 kHz.
- Pulse Outputs: 1 Hz to 100 kHz (transistor outputs).
- PWM Outputs: Up to 32,800 Hz; Analog Input: 1 input, 0 to 10 V range.
- Communications: USB, Serial, Ethernet options.
- Memory Backup: Flash memory and battery backup.
- These features make the CP1L series suitable for diverse automation needs, offering high-speed processing and flexible I/O options.
Omron Programmable Controller – CP1H Series
- Program Capacity: 20 Ksteps.
- Instructions: Approximately 500.
- I/O Points: Up to 320, depending on the model.
- High-Speed Counters: Up to 4 inputs, 100 kHz.
- Pulse Outputs: 1 Hz to 100 kHz (transistor outputs).
- Built-in Analog I/O: Available in select models.
- Communications: USB, Serial, and Ethernet options.
- Memory Backup: Flash memory and optional battery backup.
- These specifications make the CP1H series suitable for diverse automation needs, offering high-speed processing and flexible I/O options.

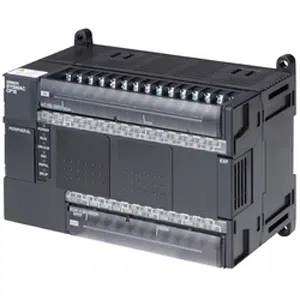

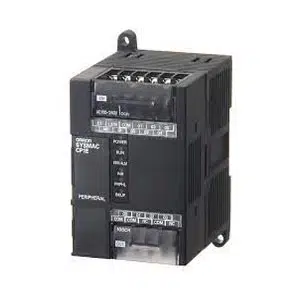

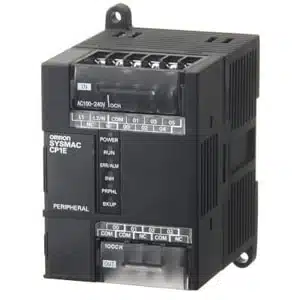

Omron Programmable Logic Controller – CP1E Series
- Program Capacity: Up to 8 Ksteps.
- Control Method: Stored program with cyclic scan.
- Programming Language: Ladder diagram.
- Processing Speed: Basic instructions from 1.19 ΞΌs.
- Expansion Capability: Support for up to 3 CP1W-series units.
- Maximum I/O Points: Up to 180, model-dependent.
- High-Speed Counters and Pulse Outputs: Support for various input types and pulse output up to 100 kHz.
- Communication Ports: RS-232C and RS-485.
- Memory Backup: Built-in EEPROM, optional battery backup.
- Ideal for diverse automation needs, the CP1E series combines efficient processing with flexible I/O and communication options.
Omron Programmable Controllers – CP2E Series
- Program Capacity: Up to 10 Ksteps.
- Instructions: Approximately 220.
- I/O Points: Up to 180, model-dependent.
- High-Speed Counters: Up to 100 kHz.
- Pulse Outputs: 1 Hz to 100 kHz.
- PWM Outputs: Up to 32,000 Hz.
- Communications: USB, RS232C, RS485, Ethernet.
- Memory Backup: Built-in Flash and non-volatile memory.
- These features make the CP2E series suitable for diverse automation needs, offering high-speed processing and flexible I/O options.

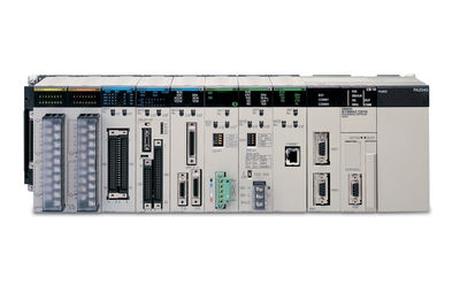

Omron Rack PLC – CS1 Series
- Program Capacity: Up to 250 Ksteps
- I/O Points: Up to 5120 points
- CPU Variants: CS1D (dual CPU), CS1G, CS1H
- Processing Speed: 20 ns per basic instruction (CS1-H)
- High-Speed Counters: Built-in 100 kHz inputs
- Position Control: Up to 16 axes with pulse output
- Communication: Ethernet, RS-232C, Controller Link, DeviceNet, Profibus
- Expansion: Up to 72 I/O units, supports distributed I/O
- Memory Backup: Battery and flash memory support

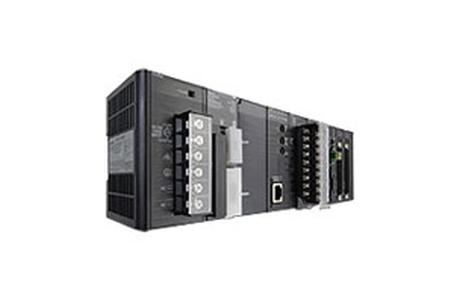

Omron Programmable Controllers – CJ1 Series
- Program Capacity: Up to 250 Ksteps
- I/O Points:Β Up to 2560 points
- CPU Models: CJ1M, CJ1G, CJ1H
- Instruction Speed: 40 ns (basic instructions)
- Position Control: Up to 4 axes (CJ1M supports pulse outputs)
- Communication: RS-232C, RS-485, Ethernet, Controller Link
- Expansion: Modular design, supports multiple I/O and function units
- High-Speed I/O: Supports encoder input and motion control
- Memory Backup: Flash memory and optional battery backup
Omron PLC – CJ2 Series
- Program Capacity:Β Up to 400 Ksteps
- I/O Points: Supports up to 2,560 I/O points
- Processing Speed: 40 nanoseconds for CJ2M and 20 nanoseconds for CJ2H
- Built-in Ports: USB, RS-232C, and Ethernet depending on the model
- Data Memory: Up to 832K words available in CJ2H
- Pulse Output: Supports up to 100 kHz pulse frequency
- High-Speed Counters: Capable of handling 50 kHz per input channel
- Expansion: Compatible with over 90 types of CJ1W I/O units
- Special Features: Supports motion control, positioning, and synchronized control functions

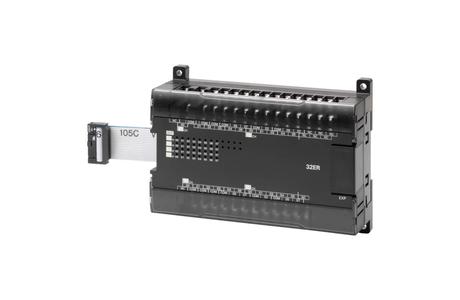

Omron Programmable Logic Controllers – CP1W Series
- I/O Types: Digital Input, Relay Output, Transistor Output, Mixed I/O
- I/O Points: 8, 16, 20, 32, 40 points (model-dependent)
- Analog Input: 2CH / 4CH (0β5 V, 1β5 V, 0β10 V, Β±10 V, 0β20 mA, 4β20 mA)
- Analog Output: 2CH / 4CH (0β10 V, Β±10 V, 4β20 mA)
- Analog I/O: Combined 2CH to 4CH input/output models
- Temperature Input: Thermocouple (J, K) or RTD (Pt100, JPt100), up to 12CH
- Communication: RS-232C, RS-422A/485, Isolated/Non-isolated
- Mounting: Direct connection to CP1E, CP1L, CP1H PLCs
- Compatibility: For N/S-type CPUs only (not supported on E-type CPUs)

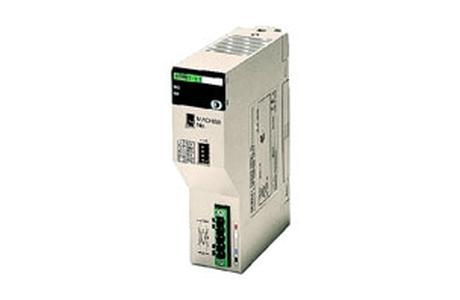

Omron PLC – C200HW Series
- Expansion Type: Power supply, I/O, communication, and special function units
- I/O Modules: Digital and analog input/output modules
- Power Supply Units: Multiple capacity options (25W to 60W)
- Communication Interfaces: RS-232C, RS-422, Host Link, SYSMAC LINK
- Special Function Units: Include temperature control, high-speed counter, and positioning
- Memory Units: EPROM, EEPROM, RAM options for program and data backup
- Mounting: Rack-type (backplane) modular structure
- System Capacity: Supports up to 480 I/O points
- Compatibility: Designed for use with C200H and C200HS PLC systems

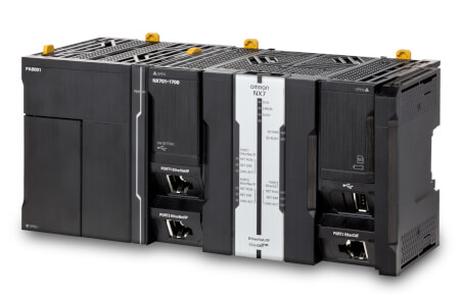

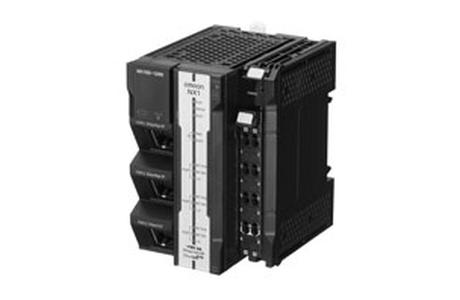

Omron Machine Automation Controller – NX1 Series
- Control Axes: Up to 12 axes via EtherCAT
- I/O Expansion: Supports up to 32 local NX I/O units
- Communication: 3 built-in industrial Ethernet ports
- OPC UA Support: Built-in OPC UA server functionality
- Database Connectivity: Direct connection without middleware
- Motion Control: PLCopen Function Blocks for easy programming
- Programming Standard: IEC 61131-3 compliant
- Power Supply: Operates on DC power (no battery required)
- Design: Compact controller with high-speed, synchronized control
Omron Motion Controllers – NJ Series
- Logic + Motion Integration: Single CPU handles both control types
- OPC UA Built-in: Standard in models like NJ501-1@00
- Axis Control: Supports up to 8 axes (NJ301) and robot control (NJ501)
- Programming: IEC 61131-3 compliant with PLCopen Motion Function Blocks
- Device Sync: Real-time synchronization with EtherCAT devices (servo, vision, field I/O)
- RAS Features: Includes frame error check, watchdog, memory check, and topology diagnostics
- Advanced Motion: Supports interpolation, cam sync, and electronic gearing
- Database Connectivity: Direct database link without middleware (NJ501/NJ101)
- Robotics & NC: Supports SCARA, cartesian, serial-link robots, and G-Code (NJ501-5300)
Omron PLC Suppliers
π οΈ Get Quotes Instantly from Omron Vendors
β Verifiedπ Trusted Vendor
Deals in PAN India
Dealing PLC Brands: Omron, IDEC
β Verifiedπ Trusted Vendor
Deals in PAN India
Dealing PLC Brands: Delta, Panasonic, Omron, Siemens, Schneider, Mitsubishi
β Verifiedπ Trusted Vendor
Deals in PAN India
Dealing PLC Brands: Omron
β Verifiedπ Trusted Vendor
Deals in South India
Dealing PLC Brands: Schneider, Siemens, Omron
β Verifiedπ Trusted Vendor
Deals in South India
Dealing PLC Brands: Omron, ABB, Siemens, Mitsubishi, Schneider
Top Omron PLC Models
Types of Omron PLC
Omron PLC systems are available in multiple types based on machine complexity, I/O requirements, and automation capabilities. These controllers are designed to support different levels of industrial automation, from small standalone machines to complex production lines.
Compact PLC
Compact PLCs are designed for small automation systems where space, cost, and simplicity are important. These PLCs typically have built-in I/O and are commonly used in packaging machines, conveyor systems, and small manufacturing equipment.
Modular PLC
Modular PLC systems allow additional modules to be added depending on the automation requirements. Expansion modules can include additional I/O, communication interfaces, and specialty modules for advanced control functions.
Machine Automation Controllers
Machine Automation Controllers are advanced PLC systems designed for high-performance automation applications such as robotics, synchronized motion control, and high-speed manufacturing systems.
Applications of Omron PLC
Omron PLCs are widely used in industrial automation to control machines, production lines, and automated systems. These controllers improve operational efficiency, accuracy, and system reliability across various industries.
Common applications include:
β’ Packaging and filling machines
β’ Conveyor and material handling systems
β’ Assembly line automation
β’ Robotics and motion control systems
β’ Automotive manufacturing lines
β’ Industrial process control systems
Omron PLCs enable reliable monitoring of inputs, logical processing of control programs, and accurate control of outputs to manage industrial machines and automated production environments.
Omron PLC FAQs
Below are some frequently asked questions about Omron PLC controllers used in industrial automation and machine control systems.
What is an Omron PLC used for?
Omron PLCs are used to control industrial machines, automation systems, and production lines. These controllers monitor input signals, process control logic, and operate outputs such as motors, sensors, and actuators in automated manufacturing environments.
What are the main Omron PLC series?
Popular Omron PLC series include CP1E, CP1L, CJ2, NJ, and NX series. These controllers support different automation requirements ranging from small machines to advanced industrial automation systems.
What is the difference between CP1E and CP1L PLC?
CP1E PLC is designed for basic automation systems and compact machines. CP1L PLC offers higher processing performance, more communication options, and better expansion capabilities compared to CP1E.
Where can I buy Omron PLC in India?
Buyers can connect with verified Omron PLC suppliers and dealers through IndMALL to get quotations and purchase genuine Omron PLC systems for industrial automation applications.
