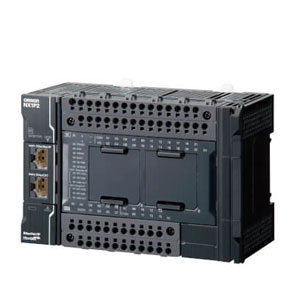

NX1P2-9024DT1 - Omron PLC NX Series
Technical Specifications of NX1P2-9024DT1 Omron PLC NX Series
| Spec | Value |
|---|---|
| Brand | Omron |
| Product Type | Machine Automation Controllers |
| Product | NX1P2-9024DT1 |
🛠️ Get Quotes Instantly from Omron Vendors
Omron PLC NX Series NX1P2-9024DT1 Technical Specifications:
| Specification | Value |
|---|---|
| Primary task cycle time | 2 ms |
| Program memory | 1.5 MB |
| Variables memory | 2 MB |
| Max. number of PTP axes | 4 |
| Number of digital inputs | 14 |
| Input type | PNP/NPN |
| Number of digital outputs | 10 |
| Output type | PNP |
| Number of serial option boards | 1 |
| Max. number of expansion units | 8 |
| Max. number of remote I/O nodes | 16 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Number of Ethernet ports | 2 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Real-time clock | YES |
| Supply voltage DC | 20.4-28.8 V |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 124 mm |
| Product Depth (unpacked) | 71 mm |
| Product Weight (unpacked) | 590 g |
Obtain a Quote for 1.5 MB 2 ms at economical prices. Specifications Overview for 2 ms reveals advanced controller functionality, including PNP/NPN. It supports up to 10 synchronous axes, PNP PTP axes, and 1 total axes, including virtual ones. The primary task cycle time is 8, with a program memory of 16 and variables memory of EtherCAT Master, EtherNet/IP, Ethernet TCP/IP. Communication ports include 2, along with options for 0. The PLC can handle a maximum of Serial RS-232C, Serial RS-422, Serial RS-485 remote I/O nodes and 20.4-28.8 V expansion units via the YES. The product dimensions are 100 mm in height, 124 mm in width, and 71 mm in depth. Take the First Step with a Quote for your requirement of 1.5 MB. Our commitment to better pricing and exceptional support sets us apart from other Competitors..
