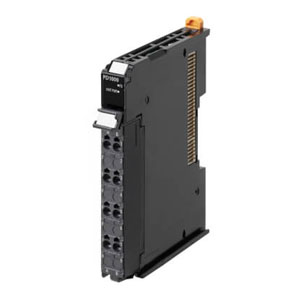

Omron NX-PC0020 Safety Controller
The Omron NX-PC0020 Safety Controller provides efficient I/O power distribution using a 16-terminal screwless push-in connector that enables quick wiring for expanding NX modules. Its no-isolation internal structure ensures streamlined power flow in compact architectures. The open-type panel-mounted enclosure meets Class III SELV and pollution degree 2 requirements, offering stable performance from 0 to 55°C with humidity up to 95%. The unit is IEC-tested for vibration and shock resistance. Manufactured by Omron and included under Omron Safety Controller, it operates as part of the NX Series.
| Brand | Omron |
| Product Type | Safety Controller |
| Model Number | NX-PC0020 |
Omron NX-PC0020 Safety Controller - Technical Specifications
| Specification | Value |
|---|---|
| Unit type | I/O Power Supply Connection Unit |
| Enclosure | Mounted in a panel (open) |
| External connection terminals | Screwless push-in terminal block (16 terminals) |
| Dimensions | 12 (W) × 100 (H) 71 ×(D) |
| Isolation method | No-isolation |
| Ambient operating temperature | 0 to 55°C |
| Ambient operating humidity | 10% to 95% (with no condensation or icing) |
| Ambient storage temperature | −25 to 70°C (with no condensation or icing) |
| Pollution degree | 2 or less |
| Insulation class | Class III (SELV) |
| Vibration resistance | Conforms to IEC 60068-2-6. 5 to 8.4 Hz with 3.5-mm amplitude 8.4 to 150 Hz, acceleration of 9.8 m/s2 100 minutes each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total) |
| Shock resistance | Conforms to IEC 60068-2-27. 147 m/s2 , 3 times each in X, Y, and Z directions |
| Insulation resistance | 20 MΩ between isolated circuits (at 100 VDC) |
| Dielectric strength | 510 VAC for 1 min between isolated circuits, leakage current: 5 mA max |
| Installation method | DIN Track (IEC 60715 TH35-7.5/TH35-15) |
| Weight | 65 g max. |
Built for performance and space-efficiency, the Omron NX-PC0020 provides a secure and organized solution for distributing power within NX-series configurations. Its 16-terminal screwless push-in block simplifies wiring and reduces setup time. With dimensions of 12 (W) × 100 (H) × 71 (D) mm and a weight of only 65 g, this unit is designed to fit seamlessly into compact control cabinets.
The NX-PC0020 is engineered for operation in demanding conditions, supporting an ambient temperature range of 0 to 55°C and humidity up to 95% without condensation. It offers 20 MΩ insulation resistance at 100 VDC, and 510 VAC dielectric strength to protect circuits from leakage and faults. The unit meets Class III (SELV) standards and resists mechanical stress with compliance to IEC 60068 for shock and vibration.
Installation is straightforward with its DIN Track mount (IEC 60715 TH35-7.5/TH35-15), making it an ideal choice for high-density, panel-based automation environments.
