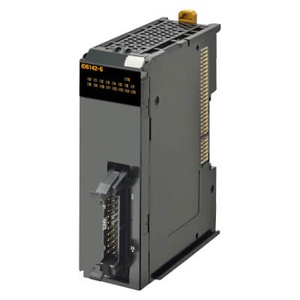

Omron NX-ID5142-5 Machine Automation Controller
The Omron NX-ID5142-5 Machine Automation Controller Digital Input Unit provides 16 channels supporting both NPN and PNP input configurations at 24 VDC. It supports Switching Synchronous I/O refreshing and Free-Run refreshing, allowing digital signals to be integrated into different machine-control architectures. Response times of up to 20 μs ON and 400 μs OFF provide responsive processing of input-state changes from connected sensors and control devices. The MIL connector interface supports efficient connection of multiple input signals in modular automation systems. The NX-ID5142-5 combines flexible NPN/PNP input compatibility with connector-based wiring within the industrial PLC I/O range supporting Omron machine control.
| Brand | Omron |
| Product Type | Machine Automation Controllers |
| Model Number | NX-ID5142-5 |
Omron NX-ID5142-5 Machine Automation Controller - Technical Specifications
| Specification | Value |
|---|---|
| Product name | DC Input Unit |
| I/O system | NX I/O Bus |
| Type of module | Digital I/O |
| Number of digital inputs | 16 |
| Digital input type | PNP/NPN |
| Rated input voltage | 24 VDC |
| Digital output type | None |
| Connection method | 1-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 1 |
| ON response time | 20 μs max. |
| OFF response time | 400 μs max |
| Degree of protection (IP) | IP20 |
| Product Weight (unpacked) | 85 g |
Call us for Omron PLC MIL20 Connector NX-ID5142-5 at the best rates. Technical Attributes of NX-ID5142-5 are 16 points with internal I/O common For both NPN/PNP and operates on a rated input voltage of 24 VDC. It supports both Switching Synchronous I/O refreshing and Free-Run refreshing methods, with an ON/OFF response time of 20 μs max./400 μs max. The unit's dimensions are 72 × 100 × 90 mm (W×H×D), and it requires a power supply voltage of 24 VDC (20.4 to 28.8 VDC) with a maximum power consumption of 5.80 W max. It also meets noise immunity standards of 2 kV on power supply line (Conforms to IEC 61000-4-4.) and has a pollution degree of 2 or less: Meets IEC 61010-2-201. The ambient operating temperature ranges from 0 to 55°C, with humidity from 10% to 95% (with no condensation), and storage temperatures from -25 to 70°C (excluding battery). Unlock Exclusive Pricing with a Quote for your requirement of Omron PLC MIL20 Connector.
