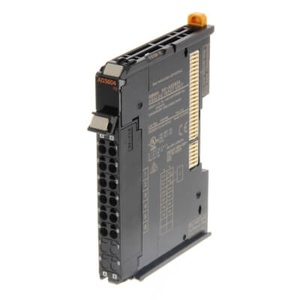

Omron NX-HAD402 Machine Automation Controller
The Omron NX-HAD402 Machine Automation Controller is a high-accuracy High-speed Analog Input Unit engineered for fast, stable multichannel measurements. It offers four differential inputs with voltage and current ranges including β10 to 10 V, β5 to 5 V, 0 to 10 V, 0 to 5 V, 1 to 5 V, 0 to 20 mA, and 4 to 20 mA, achieving resolutions up to 1/64,000. With 5 ΞΌs per-channel conversion speed and PNP trigger inputs, it supports synchronized acquisition for dynamic control tasks. Manufactured by Omron, part of the Omron Programmable Logic Controller (PLC) range under the Omron NX Series.
| Brand | Omron |
| Product Type | Machine Automation Controllers |
| Model Number | NX-HAD402 |
Omron NX-HAD402 Machine Automation Controller - Technical Specifications
| Specification | Value |
|---|---|
| Number of points | 4 |
| Input range | -10 to 10 V -5 to 5 V 0 to 10 V 0 to 5 V 1:5 V 0 to 20 mA 4 to 20 mA |
| Input method | Differential input |
| Resolution | β’ Input range of -10 to 10 V or -5 to 5 V: 1/64,000 (full scale) β’ Other input range: 1/32,000 (full scale) |
| Conversion time | 5 Β΅s per channel |
| Internal I/O common | PNP |
| I/O refreshing method | Synchronous I/O refreshing |
