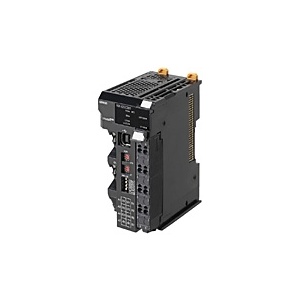

NX-ECC202 - Omron EtherCAT Coupler Unit

Name: NX-ECC202 | Omron EtherCAT Coupler Unit | Get A Quote
Brand: Omron
SKU: NX-ECC202
Availability: InStock
Rating: 4.3 (40 reviews)

Datasheet

Omron EtherCAT Coupler Unit NX-ECC202 supports 63 I/O units, 1 µs cycle time, 1024 bytes I/O data size, and 10 amp load for high-speed control tasks.

Spec	Value
Brand	Omron
Product Type	Machine Automation Controllers
Product	NX-ECC202

Omron EtherCAT Coupler Unit NX-ECC202 Technical Specifications

Specification	Value
Product name	EtherCAT Coupler Unit
Number of connectable NX Units	63 Units max.
Send/receive PDO data sizes	Input: 1,024 bytes max. (including input data, status, and unused areas) Output: 1,024 bytes max. (including output data and unused areas)
Mailbox data size	Input: 256 bytes Output: 256 bytes
Mailbox	Emergency messages and SDO requests
Emergency messages and SDO requestsRefreshing methods	• Free-Run refreshing • Synchronous I/O refreshing • Time stamp refreshing
I/O jitter performance	Inputs: 1 μs max. Outputs: 1 μs max.
Communications cycle in DC Mode	250 to 4,000 μs
NX Unit power consumption	1.45 W max
Current consumption from I/O power supply	10 mA max. (for 24 VDC)
Maximum I/O power supply current	10 A
Dimensions (mm)	46 × 100 × 71 mm (W×H×D)
Insulation Resistance	100 VDC, 20 MΩ min. (between isolated circuits)
Dielectric Strength	510 VAC for 1 min, leakage current: 5 mA max. (between isolated circuits)
Power Supply Voltage	24 VDC
Product Weight (unpacked)	170 g max
