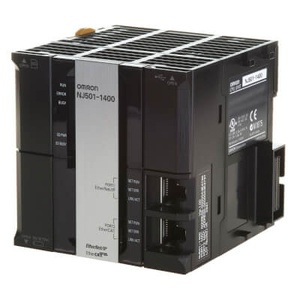

Omron NJ501-1400 Machine Automation Controller
The Omron NJ501-1400 Machine Automation Controller is a powerful CPU Unit offering 32 motion axes, 20 MB program capacity, and 6 MB of variable memory for mid-to-large automation applications. Supporting up to 2,560 I/O points and 40 configuration Units, it provides accurate synchronous motion, fast processing, and stable machine control across advanced systems. Ideal for robotics, packaging, assembly, and coordinated machine operations, it ensures deterministic performance through Sysmac architecture and high-speed communication. Manufactured by Omron, part of the Omron Programmable Logic Controller (PLC) range, available under the Omron NJ Series.
| Brand | Omron |
| Product Type | Machine Automation Controllers |
| Model Number | NJ501-1400 |
Omron NJ501-1400 Machine Automation Controller - Technical Specifications
| Specification | Value |
|---|---|
| Controller functionality | Motion control, OPC-UA, Sequence control |
| Max. number of synchronous axes | 32 |
| Max. number of axes (incl. virtual) | 32 |
| Primary task cycle time | 0.5 ms |
| Program memory | 20 MB |
| Variables memory | 6 MB |
| I/O system | CJ I/O Bus |
| Max. number of expansion units | 40 |
| Max. number of remote I/O nodes | 192 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, USB |
| Communication option(s) | CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485 |
| Product Weight (unpacked) | 550 g |
Ask for the Pricing of Omron PLC 32 Servo Axes NJ501-1400 at unbeatable prices. Detailed Specifications of NJ501-1400 offers advanced controller functionality, including Motion control, OPC-UA, Sequence control. It supports up to 32 synchronous axes, 32 PTP axes, and 0 total axes, including virtual ones. The primary task cycle time is 0.5 ms, with a program memory of 20 MB and variables memory of 6 MB. Communication ports include EtherCAT Master, EtherNet/IP, USB, along with options for CAN, CompoNet Master, DeviceNet Master, DeviceNet Slave, EtherCAT Slave, MODBUS Master, MODBUS Slave, PROFIBUS DP Master, PROFIBUS DP Slave, PROFINET Master, Serial RS-232C, Serial RS-422, Serial RS-485. The PLC can handle a maximum of 192 remote I/O nodes and 40 expansion units via the CJ I/O Bus. The product dimensions are 96 mm in height, 90 mm in width, and 150 mm in depth. Now's the Time to Secure a Quote for your requirement of Omron PLC 32 Servo Axes.
