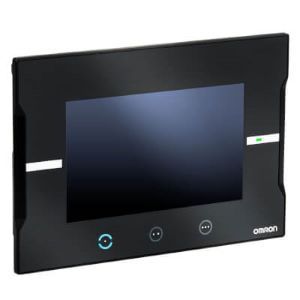

Omron NA5-7W001B-V1 Human Machine Interfaces
Omron NA5-7W001B-V1 is a 7.0-inch Human Machine Interface designed for compact machine-panel installations. Its 800 × 480 TFT LCD supports 16,770,000 colors for displaying equipment status, operating values, alarms, and graphical controls. The touchscreen provides direct access to the information and functions presented through the operator interface. Backlight lifetime is specified at 50,000 hours minimum, while maximum power consumption is 19 W. Panel dimensions are 236 × 165 × 69 mm. Within the NA Series, the NA5-7W001B-V1 provides a 7.0-inch touchscreen configuration. For compact operator panels, explore industrial HMIs available across Omron automation equipment.
| Brand | Omron |
| Product Type | Human Machine Interface |
| Model Number | NA5-7W001B-V1 |
Omron NA5-7W001B-V1 Human Machine Interfaces - Technical Specifications:
| Specification | Value |
|---|---|
| Screen Size | 7.0 inches |
| Resolution | 800x480 |
| Colors | 16,770,000 colors (24 bit full colors) |
| Type of display | TFT LCD |
| Backlight Lifetime | 50,000 hours min. |
| Dimensions in mm (H × W × D) | 236 × 165 × 69 mm |
| Weight | 1.4 kg max |
| Power Consumption | 19 W max |
The Omron NA5-7W001B-V1 Human Machine Interface uses a 7.0-inch TFT LCD with 800 × 480 resolution and 16,770,000 colors. Its touchscreen provides access to machine status, operating values, alarms, and graphical controls within a compact operator-panel format. Backlight lifetime is specified at 50,000 hours minimum, while maximum power consumption is 19 W. Panel dimensions are 236 × 165 × 69 mm. The 7.0-inch display is suited to machine panels where installation space is limited while graphical operator control is still required.
The NA5-7W001B should be selected by considering its 7.0-inch screen, 800 × 480 resolution, 16,770,000-color TFT LCD, panel dimensions, and 19 W maximum power consumption. These specifications determine the available graphical area and physical installation requirement for the HMI. A related B-type NA model is available with a 9.0-inch TFT LCD and 1280 × 800 resolution when a different screen configuration is required. See Omron NA5-9W001B.
