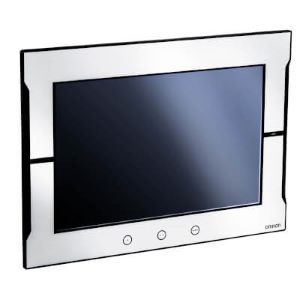

Omron NA5-15W101B-V1 Human Machine Interfaces
Omron NA5-15W101B-V1 is a 15.4-inch Human Machine Interface designed for machine visualization through a 1280 × 800 TFT LCD. The display supports 16,770,000 colors for presenting machine status, alarms, operating values, process information, and touchscreen controls. Its larger display format provides a broad graphical workspace for operator interaction. Backlight lifetime is specified at 50,000 hours minimum, while maximum power consumption is 29 W. Panel dimensions are 420 × 291 × 69 mm. Within the NA Series, the NA5-15W101B-V1 provides a 15.4-inch HMI configuration. For machine-interface requirements, explore industrial HMIs available across Omron industrial automation.
| Brand | Omron |
| Product Type | Human Machine Interface |
| Model Number | NA5-15W101B-V1 |
Omron NA5-15W101B-V1 Human Machine Interfaces - Technical Specifications:
| Specification | Value |
|---|---|
| Screen Size | 15.4 inches |
| Resolution | 1280x800 |
| Colors | 16,770,000 colors (24 bit full colors) |
| Type of display | TFT LCD |
| Backlight Lifetime | 50,000 hours min. |
| Dimensions in mm (H × W × D) | 420 × 291 × 69 mm |
| Weight | 3.2 kg max |
| Power Consumption | 29 W max |
The Omron NA5-15W101B-V1 Human Machine Interface uses a 15.4-inch TFT LCD with 1280 × 800 resolution and 16,770,000 colors. Its touchscreen supports presentation of machine status, alarms, operating values, process information, and graphical controls through a large operator interface. Backlight lifetime is specified at 50,000 hours minimum, while maximum power consumption is 29 W. Panel dimensions are 420 × 291 × 69 mm. The 15.4-inch display provides substantial graphical area for machine applications requiring multiple operating elements on one screen.
The NA5-15W101B should be selected by considering its 15.4-inch display size, 1280 × 800 resolution, 16,770,000-color TFT LCD, panel dimensions, and 29 W maximum power consumption. These specifications establish the physical and electrical requirements for installing the operator panel. A related B-type NA model is available with a 12.1-inch TFT LCD while retaining the same listed resolution and color depth. For the related 12.1-inch configuration, see Omron NA5-12W101B.
