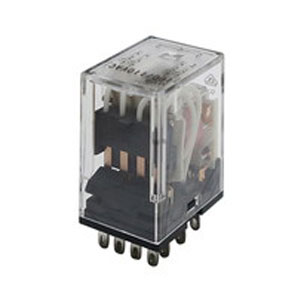

Omron MY4N AC200/220: Relay MY4N 220VAC in Chennai
The technical specifications for the Omron MY4N AC200/220 Relay:
- Operating indicator: LED
- Degree of protection: Closed type (cover)
- Terminal structure: Plug-in terminal
- Coil resistance: 12950 Ω
- Contact form: 4PDT
- Contact method: Single
- Mounting method: Socket
- Power consumption: Approx. 0.9 to 1.3 VA 60 Hz
- Ambient temperature: -55 to 60 ℃
Omron MY4N AC200/220 Relay Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | Plug-in terminal |
| Operating indicator | LED |
| Coil ratings | 200 VAC 50 Hz 6.2 mA 200 VAC 60 Hz 5.3 mA 220 VAC 50 Hz 6.8 mA 220 VAC 60 Hz 5.8 mA |
| Coil resistance | 12950 Ω |
| Operate voltage (Set voltage) | 80% max. |
| Release voltage (Reset voltage) | 30 % min. |
| Coil Maximum voltage | 110 % (23 ℃) |
| Power consumption | Approx. 0.9 to 1.3 VA 60 Hz |
| Contact rated load | 220 VAC 3 A (Resistive load) 220 VAC 0.8 A (Inductive load (cosφ = 0.4)) 24 VDC 3 A (Resistive load) 24 VDC 1.5 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 250 VAC 125 VDC |
| Max. Contact Current | AC: 3 A DC: 3 A |
| Maximum switching power | 660 VA (Resistive load) 176 VA (Inductive load (cosφ = 0.4)) 72 W (Resistive load) 36 W (Inductive load (L/R = 7 ms)) |
| Contact method | Single |
| Contact form | 4PDT |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Contact material | Au clad + Ag alloy |
| Operating time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/hour Rated load: 1800 time/hour |
| Ambient temperature (Operating) | -55 to 60 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | Socket |
| Weight | Approx. 35 g |
Are you looking for the Omron MY4N AC200/220 Relay is a great choice. It features an LED operating indicator, a closed-type cover, and plug-in terminals, with a coil resistance of 12950 Ω, it’s efficient, consuming about 0.9 to 1.3 VA at 60 Hz. This 4PDT relay with a single contact method is designed for socket mounting and operates well in ambient temperatures from -55 to 60 ℃. For the best Omron Relay prices, IndMALL Automation in Chennai is the place to visit.
