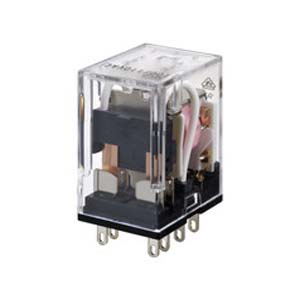

MY2Z AC110/120: Omron MY2Z Relay in Chennai
The technical specifications for the Omron MY2Z Relay MY2Z AC110/120:
- Degree of protection: Closed type (cover)
- Terminal structure: Plug-in terminal
- Contact form: DPDT
- Mounting method: Socket
- Contact material: Au plating + Ag
- Power consumption: Approx. 0.9 to 1.3 VA 60 Hz
- Contact method: Bifurcated
Omron MY2Z Relay MY2Z AC110/120 Technical Specifications:
| Degree of protection | Closed type (cover) |
| Terminal structure | Plug-in terminal |
| Coil ratings | 110 VAC 50 Hz 9.9 mA 110 VAC 60 Hz 8.4 mA 120 VAC 50 Hz 10.8 mA 120 VAC 60 Hz 9.2 mA |
| Coil resistance | 4430 Ω |
| Operate voltage (Set voltage) | 80% max. |
| Release voltage (Reset voltage) | 30 % min. |
| Maximum voltage | 110 % (23 ℃) |
| Power consumption | Approx. 0.9 to 1.3 VA 60 Hz |
| Contact rated load | 220 VAC 5 A (Resistive load) 220 VAC 2 A (Inductive load (cosφ = 0.4)) 24 VDC 5 A (Resistive load) 24 VDC 2 A (Inductive load (L/R = 7 ms)) |
| Max. contact voltage | 250 VAC 125 VDC |
| Max. Contact Current | AC: 5 A DC: 5 A |
| Maximum switching power | 1100 VA (Resistive load) 440 VA (Inductive load (cosφ = 0.4)) 120 W (Resistive load) 48 W (Inductive load (L/R = 7 ms)) |
| Contact method | Bifurcated |
| Contact form | DPDT |
| Contact resistance | 50 mΩ max. (Voltage drop method with 5 VDC 1 A) |
| Contact material | Au plating + Ag |
| Operating time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Reset time | 20 ms max. (With rated operating power applied, not including contact bounce) |
| Maximum operating frequency | Mechanical: 18000 time/hour Rated load: 1800 time/hour |
| Ambient temperature (Operating) | -55 to 70 ℃ (with no freezing or condensation) |
| Ambient humidity (Operating) | 5 to 85% |
| Mounting method | Socket |
Are you looking for an affordable and reliable Omron MY2Z Relay in Chennai? IndMALL Automation offers the MY2Z AC110/120, featuring a closed cover and plug-in terminals for easy installation. It operates with a coil resistance of 4430 Ω and consumes about 0.9 to 1.3 VA at 60 Hz. This relay can handle up to 5 A for both AC and DC and is designed to work well in temperatures from -55 to 70℃, making it suitable for various applications.
