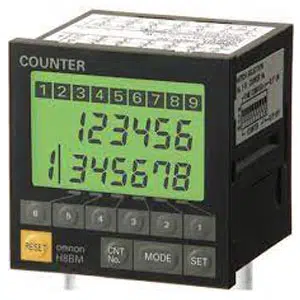

Omron H8BM-RA DC24 Counter
The Omron H8BM-RA DC24 Counter is a multi-maintenance time counter offering a 3-stage preset configuration for forecasting equipment cycles and operating hours. It combines total counting, preset counting, cumulative timing, and time counter functions while supporting ranges up to 99999.9 hours or seconds. With nine built-in counters/timers, 30/500 Hz selectable inputs, and a 6-digit LCD, it ensures accurate and flexible monitoring. Short-input capability eliminates external wiring, enhancing multi-stage control. Manufactured by Omron and listed under Omron Counter products, this model belongs to the H8BM Series.
| Brand | Omron |
| Product Type | Counters |
| Model Number | H8BM-RA DC24 |
Omron H8BM-RA DC24 Counter - Technical Specifications
| Specification | Value |
|---|---|
| Function | Total Counter, Preset Counter, Total Time Counter, Time Counter |
| Preset stages | 3 step |
| Rated supply voltage | 24 VDC (Ripple 20 % max.) |
| Operating voltage range | 85 to 110% of rated power supply voltage |
| Power consumption | at 26.4 VDC: Approx. 1.7 W |
| Count range | 0 to 999999 |
| Counter Max. counting speed | Count input 1 to 7: 30 Hz Count input 8, 9: 30 Hz/500 Hz (switching) (ON/OFF ratio 1:1) |
| Counter Minimum input signal width | 30 Hz: 16.7 ms 30 Hz/500 Hz: 16.7 ms/1 ms (selectable) |
| Counter Input mode | Increment (UP) |
| Counter Output modes | F |
| Counter One-shot output time | 20 ms |
| Counter Reset system | External and manual reset |
| Time counter Time ranges | Cumulative |
| Time counter ranges | 0.1 h to 99999.9 h/0.1 s to 99999.9 s (0.1h/0.1s selectable) |
| Time counter Reset system | External and manual reset |
| Input signal | Count, Reset, Short, Counter No. selection, I/O inhibit input |
| Input method | Voltage input |
| Voltage input | Hight level: 16 to 26.4 VDC Low level: 0 to 3 VDC (Input resistance Approx. 2.2 kΞ©) |
| Reset time External reset | 100 ms |
| Control output Solid-state output | Open collector output Residual voltage 2 V max.DC Leakage current 0.1 mA max. |
| Display method | 7-segment transmissive LCD |
| Display Digits | 6 digit |
| Memory backup methods | Method: EEP-ROM, Number of rewite: 100,000 operations min., Store data: 10 years min. |
| Ambient temperature (Operating) | -10 to 55 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 65 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85 % |
| Noise immunity | Between power terminals: Β±480 V Between input terminals: Β±480 V square-wave noise by noise simulator (pulse width: 100 ns/1 Β΅s, 1-ns rise) |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 300 m/s2, 3 times each in 3 axes 6 directions Malfunction: 200 m/s2, 3 times each in 3 axes 6 directions |
| Degree of protection | Case front: IP54 Oil-proof type |
| External connection method | Screw terminal |
| Case color | Dark gray (Munsell 5Y3/1) |
| Weight | Approx. 250 g |
Ask for the Pricing of Omron 24 VDC Supply Voltage Counter, H8BM-RA DC24 at unbeatable prices. Detailed Specifications of H8BM-RA DC24 feature Total Counter, Preset Counter, Total Time Counter, Time Counter, 24 VDC (Ripple 20 % max.), 85 to 110% of rated power supply voltage, at 26.4 VDC: Approx. 1.7 W. Moreover, it features 0 to 999999, Count input 1 to 7: 30 Hz
Count input 8, 9: 30 Hz/500 Hz (switching)
(ON/OFF ratio 1:1), 30 Hz: 16.7 ms
30 Hz/500 Hz: 16.7 ms/1 ms (selectable). Now's the Time to Secure a Quote for your requirement of Omron 24 VDC Supply Voltage Counter. We're committed to offering more favorable pricing and more responsive support than other Traders.
