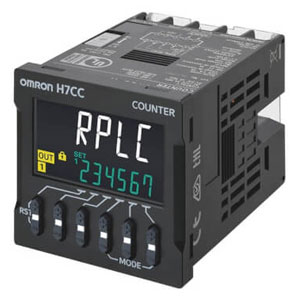

Omron H7CC-A11D Digital Counter
The Omron H7CC-A11D Counter provides dependable preset and totalizing functions with a flexible 24 VAC or 12β48 VDC supply, making it suitable for diverse control panels. It features an SPDT relay output, 11-pin socket mounting, wide β99999 to 999999 range, and selectable 30 Hz or 10 kHz speeds. The unit supports UP, DOWN, and quadrature inputs along with selectable reset modes and non-volatile memory backup. Clear LCD indication ensures readability in demanding environments. As a product manufactured by Omron under the Omron Counter category, it is part of the versatile H7CC Series.
| Brand | Omron |
| Product Type | Counters |
| Model number | H7CC-A11D |
Omron H7CC-A11D Digital Counter - Technical Specifications
| Specification | Value |
|---|---|
| Classification | Preset counter |
| Configuration | β’ 1-stage preset counter β’ Total and preset counter |
| Power Supply Voltage | 24 VAC/ 12 to 48 VDC |
| Mounting Method | Flush mounting or surface mounting |
| External Connections | 11-pin socket |
| input Signals | CP1, CP2, reset, and total reset |
| Counter Output Mode | N, F, C, R, K-1, P, Q, A, K-2, D, and L. |
| Outputs | Contact output (SPDT) |
| Digits | 6 digits -99999 to 999999 (-5 digits to +6 digits) |
| Operating voltage fluctuation range | 85% to 110% of rated supply voltage (12 to 48 VDC: 90% to 110%) |
| Degree of protection | IEC IP66 for panel surface only and only when Y92S-P6 Waterproof Packing is used |
| Maximum counting speed | 30 Hz (minimum pulse width: 16.7 ms) or 10 kHz (minimum pulse width: 0.05 ms) (selectable) (ON/OFF ratio 1:1) *Common setting for CP1 and CP2 |
| Counter Input mode | Increment (UP), decrement (DOWN), increment/decrement (UP/DOWN A (command input), UP/DOWN B (individual inputs), or UP/DOWN C (quadrature inputs)), UP/DOWN D (command input), UP/DOWN E (individual inputs), UP/DOWN E (quadrature inputs) |
| Auto-zero time/Startup time | 0.01 to 99.99 s |
| Sensor waiting time | External (minimum reset signal width: 1 ms or 20 ms, selectable), manual, and automatic reset (internal according to C, R, P, and Q mode operation) |
| Decimal point adjustment | Refer to the separate table for tachometer function ratings |
| Prescaling function | Yes (0.001 to 99.999) |
| Sensor waiting time | 290 ms max. (Control output is turned OFF and no input is accepted during sensor waiting time.) |
| Input method | No-voltage (NPN) input/voltage (PNP) input (switchable) No-voltage inputs: ON impedance: 1 kΞ© max. (Leakage current: 12 mA at 0 Ξ©) ON residual voltage: 3 V max. OFF impedance: 100 kΞ© min. Voltage input: High (logic) level: 4.5 to 30 VDC Low (logic) level: 0 to 2 VDC (Input resistance: approx. 4.7 kΞ©) |
| External power supply | 12 VDC (Β±10%), 100 mA (except for H7CC-A8@ models) Refer to Precautions for Correct Use on page 61 for details |
| Control output | β’ Contact output: 3 A at 250 VAC/30 VDC, resistive load (cosΟ=1), Minimum applied load: 10 mA at 5 VDC (failure level: P, reference value) β’ Transistor output: NPN open collector, 100 mA at 30 VDC, Residual voltage: 1.5 VDC max. (approx. 1 V), Leakage current: 0.1 mA max. |
| Display | 7-segment, negative transmissive LCD Character height Count value: 10 mm (white) Set value: 6 mm (green) |
| Memory backup | Non-volatile memory (overwrites: 100,000 times min.) that can store data for 10 years min. |
| Operating temperature range | -10 to 55Β°C (-10 to 50Β°C if Counter/Tachometers are mounted side by side) (with no icing or condensation) |
| Storage temperature range | -25 to 70Β°C (with no icing or condensation) |
| Operating humidity range | 25% to 85% |
| Case Color | Black (N1.5) |
Ask for the Pricing of Omron Pulse Counter, H7CC-A11D at unbeatable prices. Detailed Specifications of H7CC-A11D feature Preset counter, 24 VAC/ 12 to 48 VDC, 5.5 VA/3.3 W, Flush mounting or surface mounting. Moreover, it features 11-pin socket, CP1, CP2, reset, and total reset , N, F, C, R, K-1, P, Q, A, K-2, D, and L.. Now's the Time to Secure a Quote for your requirement of Omron Pulse Counter. We're committed to offering more favorable pricing and more responsive support than other Traders.
