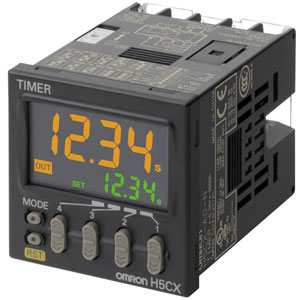

Omron H5CX-A11S-N Timer
The Omron H5CX-A11S-N Timer is a compact industrial timing unit designed to operate within 85 to 110% of rated supply voltage.It features 10 time ranges along with a No-voltage (NPN)/Voltage (PNP) input (selectable) input method. Its 7-segment negative transmissive LCD 4 digit provides clear visibility, while static immunity of 8 kV mulfunction and 15 kV destruction ensures reliable operation. Manufactured by Omron, listed under Omron Timers, this model belongs to the H5CX Series and supports Flush mounting / Surface mounting with 11-pin round socket connections in a Black (Munsell N1.5) case.
| Brand | Omron |
| Product Type | Timers |
| Model Number | H5CX-A11S-N |
Omron H5CX-A11S-N Timer - Technical Specifications
| Specification | Value |
|---|---|
| Rated supply voltage | 100 to 240 VAC (50/60 Hz) |
| Operating voltage range | 85 to 110% of rated supply voltage |
| Power consumption | Approx. 6.2 VA |
| Time rangesοΌNumber of ranges | 10 |
| Time ranges | 0.001 to 9.999 s 0.01 to 99.99 s 0.1 to 999.9 s 1 to 9999 s 0.1 to 999.9 min 1 to 9999 min 0.1 to 999.9 h 1 to 9999 h 1 s to 99 min 59 s 1 min to 99 h 59 min |
| Input method | No-voltage (NPN)/Voltage (PNP) input (selectable) |
| No-voltage input (Solid state input) | Short-circuit (ON) impedance: 1 kΞ© max. (Leakage current (0 Ξ©): Approx. 12 mA) Short-circuit (ON) residual voltage: 3 V max. Open circuit impedance: 100 kΞ© min. (The DC voltage must be 30 VDC max.) |
| No-voltage input (Applicable two-wire sensor) | Leakage current: 1.5 mA max. Switching capacities: 5 mA min. Residual voltage: 3.0 VDC max. Operating voltage: 10 VDC |
| Voltage input | High level: 4.5 to 30 VDC Low level: 0 to 2 VDC (Input resistance 4.7 kΞ©) |
| Output modes | A: Signal ON delay (β ) A-1:Signal ON delay (β ‘) A-2: Power ON delay (β ) A-3: Power ON delay (β ‘) b: Repeat cycle (β ) b-1: Repeat cycle (β ‘) d: Signal OFF delay E: Interval F: Cumulative Z: ON/OFF-duty adjustable flicker S: Stopwatch toff: Flicker OFF start (β ) ton: Flicker ON start (β ) toff-1: Flicker OFF start (β ‘) ton-1: Flicker ON start (β ‘) |
| Control output (Solid state output) | Time-limit contact: SPDT Resistive load: 5 A at 250 VAC/30 VDC (cosΟ = 1) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Reset system | Power reset (depending on output mode)/Automatic reset (depending on output mode)/External reset/Manual reset |
| Power reset | Minimum power-opening time: 0.5 s (except for A-3, b-1, F, ton-1 and toff-1 mode) |
| Timer mode | Elapsed time (UP) and remaining time (DOWN) (selectable) |
| Display method | 7-segment negative transmissive LCD 4 digit |
| Character height | Present value: 12 mm (Red, green or orange programmable) Set value: 6 mm (green) |
| Key protect method | Key protect Switch |
| Memory backup method | EEP-ROM (number of writes: 100,000 operations min., Service life: 10 years min.) |
| Ambient temperature (Operating) | -10 to 55 β (with no freezing or condensation) When mount timer side by side: -10 to 50 β (with no freezing or condensation) |
| Ambient temperature (Storage) | -25 to 70 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Accuracy of operating time | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Setting error | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Influence of voltage | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Influence of temperature | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±3 ms max. (The values are based on the set value. The value is applied for a minimum pulse width of 1 ms.) |
| Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΞ© min. (at 500 VDC) Between non-continuous contacts: 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min Between operating power circuit and input circuit: 2000 VAC 50/60 Hz 1 min Between control output, and power supply/input circuit: 2000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 5 kV Between current carrying terminals and exposed non-current carrying metal parts: 5 kV |
| Noise immunity | Between power terminals: Β±1.5 kV Between input terminals: Β±600 kV square-wave noise by noise simulator, pulse width: 100 ns/1 Β΅s, 1-ns rise |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz 0.35 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 300 m/s2, 3 times each in 3 axes each directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy | Electrical: 100,000 operations min. (5 A at 250 VAC resistive load at 1800 operations/h, 23 β) Mechanical: 10 million operations min. (under no load at 1,800 operations/h, 23 β) |
| Degree of protection | IEC IP66, UL508 Type 4X (indoors) (when using the Y92S-29 Waterproof Packing and Y92F-30 Flush Mounting Adapter) |
| Mounting method | Flush mounting / Surface mounting |
| External connection method | 11-pin round socket |
| Case color | Black (Munsell N1.5) |
| Attachment | Label for DIP switch settings |
| Accessory (sold separately) | Soft Cover: Y92A-48F1 Hard Cover: Y92A-48 Flush mounting adapter: Y92F-30/Y92F-45/Y92F-38 Waterproof packing: Y92S-29 Replacement Front Panel: Y92P-CXT4S/Y92P-CXT4G/Y92P-CXT4B |
| Weight | Main Unit: Approx. 115 g |
