Omron H5CX-A-N Timer

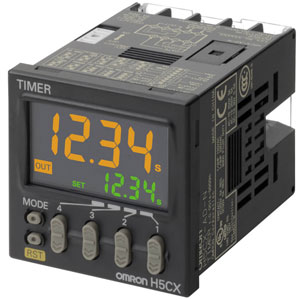

The Omron H5CX-A-N Timer is a compact industrial timing unit designed to operate within 85 to 110% of rated supply voltage.It features 10 time ranges along with a No-voltage (NPN)/Voltage (PNP) input (selectable) input method. Its 7-segment negative transmissive LCD 4 digit provides clear visibility, while static immunity of 8 kV mulfunction and 15 kV destruction ensures reliable operation. Manufactured by Omron, listed under Omron Timers, this model belongs to the H5CX Series and supports Flush mounting with Screw terminal connections in a Black (Munsell N1.5) case.
| Brand | Omron |
| Product | Timers |
| Model Number | H5CX-A-N |
Omron H5CX-A-N Timer - Technical Specifications
| Specification | Value |
|---|---|
| Rated supply voltage | 100 to 240 VAC (50/60 Hz) |
| Operating voltage range | 85 to 110% of rated supply voltage |
| Connection method | Screw terminal |
| Mounting method | Flush mounting |
| Power consumption | Approx. 6.2 VA |
| Time ranges (Number of ranges) | 10 |
| Time ranges | 0.001 to 9.999 s 0.01 to 99.99 s 0.1 to 999.9 s 1 to 9999 s 0.1 to 999.9 min 1 to 9999 min 0.1 to 999.9 h 1 to 9999 h 1 s to 99 min 59 s 1 min to 99 h 59 min |
| Input method | No-voltage (NPN)/Voltage (PNP) input (selectable) |
| Output modes | A: Signal ON delay (β ) A-1:Signal ON delay (β ‘) A-2: Power ON delay (β ) A-3: Power ON delay (β ‘) b: Repeat cycle (β ) b-1: Repeat cycle (β ‘) d: Signal OFF delay E: Interval F: Cumulative Z: ON/OFF-duty adjustable flicker S: Stopwatch toff: Flicker OFF start (β ) ton: Flicker ON start (β ) toff-1: Flicker OFF start (β ‘) ton-1: Flicker ON start (β ‘) |
| Reset system | Power reset (depending on output mode)/Automatic reset (depending on output mode)/External reset/Manual reset |
| Timer mode | Elapsed time (UP) and remaining time (DOWN) (selectable) |
| Display method | 7-segment negative transmissive LCD 4 digit |
| Character height | Present value: 12 mm (Red, green or orange programmable) Set value: 6 mm (green) |
| Ambient temperature range | -10 to 55 β (with no freezing or condensation) When mount timer side by side: -10 to 50 β (with no freezing or condensation) |
| Ambient humidity (Operating) | 25 to 85% |
| Accuracy of operating time | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±0.03 s max. (The values are based on the set value.) |
| Setting error | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±0.03 s max. (The values are based on the set value.) |
| Influence of voltage | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±0.03 s max. (The values are based on the set value.) |
| Influence of temperature | Power-ON start: Β±0.01% Β±0.05 s max. (The values are based on the set value.) Signal start: Β±0.005% Β±0.03 s max. (The values are based on the set value.) |
| Insulation resistance | Between current carrying terminals and exposed non-current carrying metal parts: 100 MΞ© min. (at 500 VDC) Between non-continuous contacts: 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2000 VAC 50/60 Hz 1 min Between operating power circuit and input circuit: 2000 VAC 50/60 Hz 1 min Between control output, and power supply/input circuit: 2000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 5 kV Between current carrying terminals and exposed non-current carrying metal parts: 5 kV |
| Noise immunity | Between power terminals: Β±1.5 kV Between input terminals: Β±600 kV square-wave noise by noise simulator, pulse width: 100 ns/1 Β΅s, 1-ns rise |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz 0.35 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 300 m/s2, 3 times each in 3 axes each directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy | Electrical: 100,000 operations min. (5 A at 250 VAC resistive load at 1800 operations/h, 23 β) Mechanical: 10 million operations min. (under no load at 1,800 operations/h, 23 β) |
| Degree of protection | IEC IP66, UL508 Type 4X (indoors) (when using the Y92S-29 Waterproof Packing and Y92F-30 Flush Mounting Adapter) |
| Case color | Black (Munsell N1.5) |
| Accessory (sold separately) | Soft Cover: Y92A-48F1 Hard Cover: Y92A-48 Flush mounting adapter: Y92F-30/Y92F-45/Y92F-38 Waterproof packing: Y92S-29 Replacement Front Panel: Y92P-CXT4S/Y92P-CXT4G/Y92P-CXT4B |
| Ambient temperature range | -10 to 55 β (with no freezing or condensation) When mount timer side by side: -10 to 50 β (with no freezing or condensation) |
| No-voltage input (Solid state input) | Short-circuit (ON) impedance: 1 kΞ© max. (Leakage current (0 Ξ©): Approx. 12 mA) Short-circuit (ON) residual voltage: 3 V max. Open circuit impedance: 100 kΞ© min. (The DC voltage must be 30 VDC max.) |
| No-voltage input (Contact input) | Use contact which can adequately switch 5 mA at 10 V |
| No-voltage input (Applicable two-wire sensor) | Leakage current: 1.5 mA max. Switching capacities: 5 mA min. Residual voltage: 3.0 VDC max. Operating voltage: 10 VDC |
| Voltage input | High level: 4.5 to 30 VDC Low level: 0 to 2 VDC (Input resistance 4.7 kΞ©) |
| Control output (Solid state output) | Time-limit contact: SPDT Resistive load: 5 A at 250 VAC/30 VDC (cosΓβ = 1) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Power reset | Minimum power-opening time: 0.5 s (except for A-3, b-1, F, ton-1 and toff-1 mode) |
| Key protect method | Key protect Switch |
| Memory backup method | EEP-ROM (number of writes: 100,000 operations min., Service life: 10 years min.) |
| Attachment | Flush mounting adapter, waterproof packing, label for DIP switch settings, terminal covers |
| Weight | Main Unit: Approx. 115 g |
