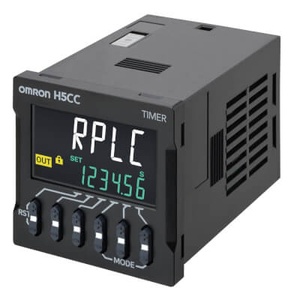

Omron H5CC-L8D Timer
The Omron H5CC-L8D Timer is a reliable Digital timing solution designed for accurate control in modern industrial systems. It supports DIN rail, On-panel, Socket installation, ensuring flexibility for both new setups and panel replacements. Built in a compact 1/16 DIN (48 x 48 mm) format with an 8-pin Plug-in terminal layout, it delivers simple mounting and quick maintenance. As a Digital Timer, it offers a Multi-functional operating structure, equipped with an SPDT Relay outputfor reliable switching. Operating on 24-24 VAC and 12-48 VDC, it also provides Reset (NPN/PNP), Signal (NPN/PNP) compatible reset and signal inputs for seamless integration. Manufactured by Omron and available under Omron Timers, this model is part of the trusted H5CC Series.
| Brand | Omron |
| Product Type | Timers |
| Model Number | H5CC-L8D |
Omron H5CC-L8D Timer - Technical Specifications
| Specification | Value |
|---|---|
| Type | Digital |
| Installation type | DIN rail, On-panel, Socket |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal type | Plug-in |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Power ON Start), ON Delay (Signal Start), Signal ON/OFF Delay |
| Output type | Relay |
| Contact description | SPDT |
| Supply voltage AC | 24-24 V |
| Supply voltage DC | 12-48 V |
| Number of pin contact | 8 |
| Inputs | Reset (NPN/PNP), Signal (NPN/PNP) |
The Omron H5CC-L8D is an economy-type digital timer offering versatile time control in a compact 1/16 DIN housing. With an 8-pin plug-in design, itβs easy to install on DIN rails, panels, or sockets, making it ideal for space-saving electrical control systems.
This model supports multiple operating modes, including ON delay, OFF delay, flicker, interval, and signal-based ON/OFF delay. It features a SPDT time-limit contact output and accepts NPN or PNP input signals for gate, reset, or trigger functions. The clear digital interface and screw-less connection format simplify configuration and maintenance.
Operating on a flexible voltage range of 12 to 48 VDC or 24 VAC, the H5CC-L8D is well-suited for motor control, lighting, and process automation where precise and affordable timing is essential. Its robust design and multi-functionality make it a dependable choice for industrial time control applications.
