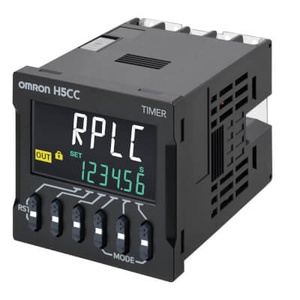

Omron H5CC-AU Timer
The Omron H5CC-AU Timer is a reliable Digital timing solution designed for accurate control in modern industrial systems. It supports On-panel installation, ensuring flexibility for both new setups and panel replacements. Built in a compact 1/16 DIN (48 x 48 mm) format with Screw terminal layout, it delivers simple mounting and quick maintenance. As a Digital Timer, it offers a Multi-functional operating structure, equipped with an SPDT Relay, Transistor outputfor reliable switching. Operating on 100-240 VAC, it also provides Gate (NPN/PNP), Reset (NPN/PNP), Signal (NPN/PNP) compatible reset and signal inputs for seamless integration. Manufactured by Omron and available under Omron Timers, this model is part of the trusted H5CC Series.
| Brand | Omron |
| Product Type | Timers |
| Model Number | H5CC-AU |
Omron H5CC-AU Timer - Technical Specifications
| Specification | Value |
|---|---|
| Type | Digital |
| Installation type | On-panel |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal type | Screw |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Power ON Start), ON Delay (Signal Start), Signal ON/OFF Delay |
| Output type | Relay, Transistor |
| Contact description | SPDT |
| Supply voltage AC | 100-240 V |
| Inputs | Gate (NPN/PNP), Reset (NPN/PNP), Signal (NPN/PNP) |
The Omron H5CC-AU is a reliable digital timer designed for precision time control in compact electrical panels. With a standard 1/16 DIN (48 Γ 48 mm) size and clear digital display, it fits easily into a variety of industrial and automation applications.
It supports a wide range of timing modes such as ON delay, OFF delay, interval, flicker, and signal-based start/stop. The unit offers a SPDT contact output and a SPST transistor output, with input signal compatibility for both NPN and PNP configurations. Screw terminal connections ensure fast wiring and secure installation during setup or replacement.
Powered by 100β240 VAC, the H5CC-AU is ideal for controlling motors, lights, or other equipment based on precise timing requirements. Its multi-function capability, durable construction, and easy configurability make it a dependable solution for time-based control systems in various industries.
