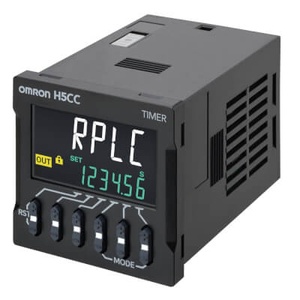

Omron H5CC-A Timer
The Omron H5CC-A Timer is a reliable Digital timing solution designed for accurate control in modern industrial systems. It supports On-panel installation, ensuring flexibility for both new setups and panel replacements. Built in a compact 1/16 DIN (48 x 48 mm) format with Screw terminal layout, it delivers simple mounting and quick maintenance. As a Digital Timer, it offers a Multi-functional operating structure, equipped with an SPDT Relay outputfor reliable switching. Operating on 100-240 VAC, it also provides Gate (NPN/PNP), Reset (NPN/PNP), Signal (NPN/PNP) compatible reset and signal inputs for seamless integration. Manufactured by Omron and available under Omron Timers, this model is part of the trusted H5CC Series.
| Brand | Omron |
| Product | Timers |
| Model Number | H5CC-A |
Omron H5CC-A Timer - Technical Specifications
| Specification | Value |
|---|---|
| Type | Digital |
| Installation type | On-panel |
| Functions | Multi-functional |
| Size | 1/16 DIN (48 x 48 mm) |
| Terminal type | Screw |
| Operating mode | Flicker OFF Start (Signal Start), Flicker ON Start (Signal Start), Interval (Signal Start), OFF Delay (Signal), ON Delay (Power ON Start), ON Delay (Signal Start), Signal ON/OFF Delay |
| Output type | Relay |
| Contact description | SPDT |
| Supply voltage AC | 100-240 V |
| Inputs | Gate (NPN/PNP), Reset (NPN/PNP), Signal (NPN/PNP) |
The Omron H5CC-A is a compact and versatile digital timer designed for multi-mode timing control in industrial panels. Housed in a standard 1/16 DIN (48 Γ 48 mm) enclosure, it supports multiple timing operations such as ON delay, OFF delay, interval, flicker ON/OFF, and signal ON/OFF delay.
This timer offers a flexible SPDT contact output and supports both NPN and PNP input types, switchable as needed for various control signals like start, gate, or reset. It operates on a wide AC voltage range of 100β240 V, making it suitable for diverse power systems. The screw terminal design ensures secure and straightforward panel wiring.
Engineered for reliable time-based automation, the H5CC-A is ideal for process control, machine cycling, and panel-mounted timing applications. Its digital interface, multifunction capability, and robust build make it a dependable component in modern industrial automation systems.
