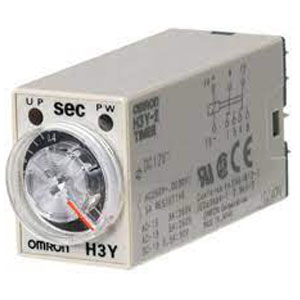

Omron H3Y-2 DC24 5S Solid-state Timer

Name: Omron H3Y-2 DC24 5S
Brand: Omron
SKU: H3Y-2 DC24 5S
Rating: 4.8 (4 reviews)

The Omron H3Y-2 DC24 5S Timer is a reliable Power ON-delay timer designed with an allowable voltage variable range of 85 to 110% of the power supply voltage consumption of Approx. 0.9 W (at 24 VDC). It supports a reset voltage of 1 and offers one selectable time range for consistent timing performance. This Time-limit: DPDT output model operates with Time-limit operation/Self-reset functionality. It features an connecting method and a Beige case color. Manufactured by Omron, listed in Omron Timers, and part of the Omron H3Y-2 Series

Datasheet

Brand	Omron
Product	Timers
Model Number	H3Y-2 DC24 5S

Omron H3Y-2 DC24 5S Solid-state Timer - Technical Specifications

Specification	Value
Rated power supply voltage	24 VDC If power supply incorporates a single-phase full-wave rectifier.
Allowable voltage variable range	85 to 110% of the power supply voltage
Reset voltage	10% min, of rated supply voltage
Number of time ranges	1
Operation mode	Power ON-delay
Control output (Type)	Time-limit: DPDT
Control output (Contact output)	Resistive load: 250 VAC 5 A (cosÏ†=1) Minimum applicable load: 1 mA at 5 VDC (failure level: P)
Operating resetting	Time-limit operation/Self-reset
Connection method	8-pin round socket
Power consumption	Approx. 0.9 W (at 24 VDC)
