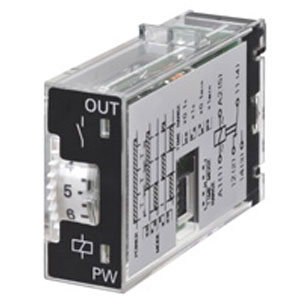

Omron H3RN-1-B DC12 Timer
The Omron H3RN-1-B DC12 Timer provides dependable timing performance with a rated power supply voltage of 12 VDC and an allowable voltage variable range of 90 to 110% of the power supply voltage. It supports a reset voltage of up to 10% max. of rated supply voltage and offers 4 time ranges suitable for standard timing applications. The timer features an SPDT time-limit control output and connects through a 5-pin round socket (Push-In Plus Terminal Block). Manufactured by Omron, listed under Omron Timers, and part of the H3RN Series.
| Brand | Omron |
| Product | Timers |
| Model Number | H3RN-1-B DC12 |
Omron H3RN-1-B DC12 Timer - Technical Specifications
| Specification | Value |
|---|---|
| Rated power supply voltage | 12 VDC |
| Allowable voltage variable range | 90 to 110% of the power supply voltage |
| Power consumption | Relay ON: Approx. 0.4 W |
| Reset voltage | 10% max. of rated supply voltage |
| Number of time ranges | 4 |
| Operation mode | ON delay, Interval, Flicker ON start, Flicker OFF start |
| Control output (Type) | Time-limit: SPDT |
| Control output (Contact output) | Resistive load: 3 A at 250 VAC (cosΟ=1) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Ambient temperature range | Operating: -10 to 55 β (with no icing) Storage: -25 to 65 β (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | Β±1% FS max. (Β±1% Β±10 ms in a range of 1 s) |
| Setting error | Β±15% FS Β±50 ms max. |
| Reset time | 0.1 s max. (including halfway reset) |
| Influence of voltage | Β±2% FS max. |
| Influence of temperature | Β±2% FS max. |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | Between operating power circuit and control output: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 1 kV |
| Noise immunity | Β±1.5 kV square-wave noise by noise simulator (pulse width: 100 ns/1 Β΅s, 1-ns rise) |
| Static immunity | Mulfunction: 4 kV, Destruction: 8 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 1 hour Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 980 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 100,000 operations min. (3 A at 250 VAC, resistive load at 1800 operations/h) Mechanical: 10 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | IP40 (excluding terminal section) |
| Connecting method | 5-pin round socket (Push-In Plus Terminal Block) |
| Case color | Black |
| Weight | Approx. 18 g |
Get A Quote for Omron Relay Socket Timer, H3RN-1-B DC12 at the best price. Here are the brief Technical Specifications of H3RN-1-B DC12: Relay ON: Approx. 0.4 W, 90 to 110% of the power supply voltage, 12 VDC, Omron H3RN-1-B DC12 Timer - Technical Specifications. And it offers ON delay, Interval, Flicker ON start, Flicker OFF start, 4, 10% max. of rated supply voltage. It's Time to get a Quote for your requirement of Omron Relay Socket Timer. We guarantee unmatched pricing and unparalleled support compared to other Distributors.
