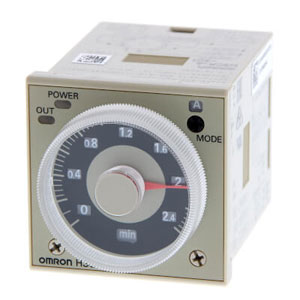

Omron H3CR-AP AC24-48/DC12-48 Timer
The Omron H3CR-AP AC24-48/DC12-48 Timer is designed for precise timing control with an allowable voltage variable range of 85% to 110% of rated voltage (90 to 110% at 12 to 48 VDC). The model supports a reset voltage within 10% max. of rated supply voltage and offers 18 time ranges for flexible operation. With a DPDT time-limit control output, 11-pin round socket connections. Manufactured by Omron, listed under Omron Timers, and part of the H3CR-A Series.
| Brand | Omron |
| Product | Timers |
| Model Number | H3CR-AP AC24-48/DC12-48 |
Omron H3CR-AP AC24-48/DC12-48 Timer - Technical Specifications
| Specification | Value |
|---|---|
| Rated power supply voltage | 24 to 48 VAC 50/60 Hz 12 to 48 VDC Ripple 20% max. (If power supply incorporates a single-phase full-wave rectifier) |
| Allowable voltage variable range | 85% to 110% of rated voltage (90 to 110% at 12 to 48 VDC) |
| Input signals | Start |
| Input method | Voltage input |
| No-voltage input | Voltage input: High level: 20.4 to 52.8 VAC/10.8 to 52.8 VDC Low level: 0 to 2.4 VAC/0 to 1.2 VDC |
| Power Consumption | Relay ON: Approx. 0.9 W (at 24 VDC)/Relay OFF: Approx. 0.3 W (at 24 VDC) |
| Reset Voltage | 10% max. of rated supply voltage |
| Number of time ranges | 18 |
| Operation mode | ON delay, Flicker OFF start, Flicker ON start, Signal ON/OFF delay, Signal OFF delay, Interval, Signal ON/OFF delay, One shot output |
| Control output (Contact output) | Resistive load: 250 VAC 5 A (cosΟ=1)/5 A at 30 VDC/ Inductive load (Reference value): 2 A at 250 VAC (cosΟ=0.4)/3 A at 30 VDC (L/R=7 ms) Minimum applicable load: 10 mA at 5 VDC (failure level: P Reference value) |
| Control output (Type) | Time-limit: DPDT |
| Operating resetting | Time-limit operation/Self-reset/External reset |
| Ambient temperature range | Operating: -10 to 55 β (with no icing) Storage: -25 to 65 β (with no icing) |
| Ambient humidity range | Operating: 35 to 85% |
| Accuracy of operating time | Β±0.2% FS max. Β±0.2% Β±10 ms in a range of 1.2 s and 3 s |
| Setting error | Β±5% FS Β±50 ms max. The value is Β±5% FS +100 ms to -0 ms max. when the C, D, or G mode signal |
| Reset time | 0.1 s max. |
| Influence of voltage | Β±0.2% FS max. Β±0.2% Β±10 ms in a range of 1.2 s and 3 s |
| Influence of temperature | Β±1% FS max. (Β±1% Β±10 ms in a range of 1.2 s and 3 s) |
| Insulation resistance | 100 MΞ© min. (at 500 VDC) |
| Dielectric strength | Between current carrying metal parts and non-current carrying metal parts: 2,000 VAC 50/60 Hz 1 min Between control output terminals and operating circuit: 2,000 VAC 50/60 Hz 1 min Between contacts of different polarity: 2,000 VAC 50/60 Hz 1 min Between non-continuous contacts: 1,000 VAC 50/60 Hz 1 min |
| Impulse withstand voltage | Between power terminals: 5 kV Between current carrying terminals and exposed non-current carrying metal parts: 5 kV |
| Noise immunity | Β±1.5 kV (between power terminals) and Β±600 V (between No-voltage input terminals), square-wave noise by noise simulator (pulse width: 100 ns/1 Β΅s, 1-ns rise) |
| Static immunity | Mulfunction: 8 kV, Destruction: 15 kV |
| Vibration resistance | Destruction: 10 to 55 Hz, 0.75 mm single amplitude each in 3 directions for 2 h Malfunction: 10 to 55 Hz, 0.5 mm single amplitude each in 3 directions for 10 min |
| Shock resistance | Destruction: 1,000 m/s2, 3 times each in 6 directions Malfunction: 100 m/s2, 3 times each in 6 directions |
| Life expectancy (relay output) | Electrical: 100,000 operations min. (5 A at 250 VAC, resistive load at 1800 operations/h) Mechanical: 20 million operations min. (under no load at 1,800 operations/h) |
| Degree of protection | Panel surface: IP40 Terminals: IP00 |
| Connecting method | 11-pin round socket |
| Case color | Munsell 5Y7/1 |
| Weight | Approx. 90 g |
