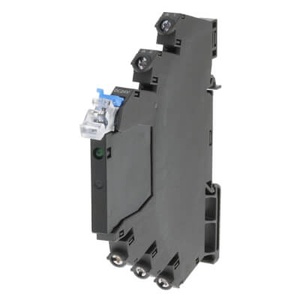

Omron G3RV-ST700-D DC24 Solid-state Relay
The Omron G3RV-ST500-D DC24 Solid-state Relay (SSR) is a slim and high-efficiency switching module designed for control panels requiring compact DIN-rail mounting. It features a photocoupler isolation method, screw terminals, and supports a 3β26.4 V DC operating range with a 19.2β26.4 V DC supply voltage for stable performance. The relay provides a 3 A AC-1 rated current, making it suitable for DC load switching in high-density I/O systems. With improved LED visibility, efficient wiring, and Push-In Plus advantages, it ensures reliable panel integration. Manufactured by Omron and listed under Omron Solid State Relay solutions, this model belongs to the G3RV Series.
| Brand | Omron |
| Product | Solid State Relay |
| Model Number | G3RV-ST700-D DC24 |
Omron G3RV-ST700-D DC24 Solid-state Relay - Technical Specifications
| Specification | Value |
|---|---|
| Number Of Phases | 1 |
| Isolation Method | Photocoupler |
| Mounting | DIN rail |
| Terminal Type | Screw |
| Rated Operation Current Ie At Ac 1 | 3 A |
| Supply Voltage Dc | 19.2-26.4 V |
| Operating Voltage Range Dc | 3-26.4 V |
The Omron G3RV-ST700-D DC24 is a space-saving 6 mm solid state relay designed for efficient I/O control in compact control panels. It features DC output switching using a durable MOSFET driver, and supports loads up to 3 A for various automation and machine control systems.
This SSR includes a DIN rail mountable socket and screw terminals for easy wiring and fast setup. With input operating voltage from 19.2 to 26.4 VDC and a load voltage range of 3 to 26.4 VDC, it offers flexibility for low-voltage control applications. The internal photocoupler isolation ensures safe, interference-resistant switching performance.
The G3RV-ST700-D is compact relay replacements, and distributed control systems. Its slim profile and reliable solid-state design make it suitable for high-density wiring environments where space and signal integrity are critical.
